Paper Title:

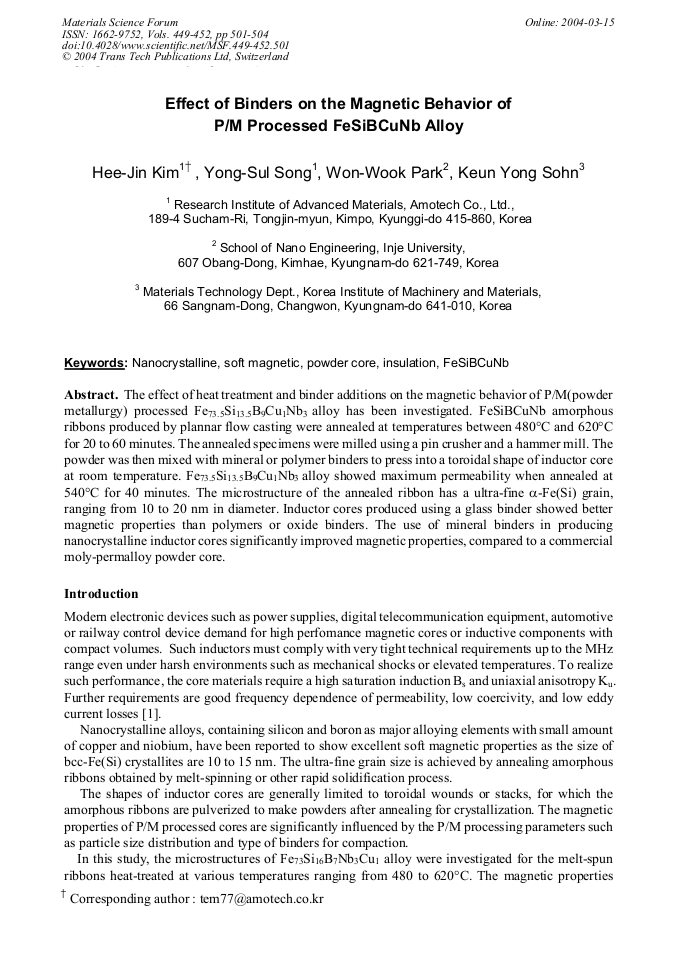

Effect of Binders on the Magnetic Behavior of P/M Processed FeSiBCuNb Alloy
  Abstract

The effect of heat treatment and binder additions on the magnetic behavior of P/M(powder metallurgy) processed Fe73.5Si13.5B9Cu1Nb3 alloy has been investigated. FeSiBCuNb amorphous ribbons produced by plannar flow casting were annealed at temperatures between 480°C and 620°C for 20 to 60 minutes. The annealed specimens were milled using a pin crusher and a hammer mill. The powder was then mixed with mineral or polymer binders to press into a toroidal shape of inductor core at room temperature. Fe73.5Si13.5B9Cu1Nb3 alloy showed maximum permeability when annealed at 540°C for 40 minutes. The microstructure of the annealed ribbon has a ultra-fine α-Fe(Si) grain, ranging from 10 to 20 nm in diameter. Inductor cores produced using a glass binder showed better magnetic properties than polymers or oxide binders. The use of mineral binders in producing nanocrystalline inductor cores significantly improved magnetic properties, compared to a commercial moly-permalloy powder core.

  Info
Periodical
Materials Science Forum (Volumes 449-452)
Edited by
S.-G. Kang and T. Kobayashi
Pages
501-504
DOI
10.4028/www.scientific.net/MSF.449-452.501
Citation
H. J. Kim, Y. S. Song, W. W. Park, K. Y. Sohn, "Effect of Binders on the Magnetic Behavior of P/M Processed FeSiBCuNb Alloy", Materials Science Forum, Vols. 449-452, pp. 501-504, 2004
Online since
March 2004
