Growth of Undoped (Vanadium-Free) Semi-Insulating 6H-SiC Single Crystals

Journal Materials Science Forum (Volumes 483 - 485)
Volume Silicon Carbide and Related Materials 2004
Edited by Roberta Nipoti, Antonella Poggi and Andrea Scorzoni
Pages 35-38
DOI 10.4028/www.scientific.net/MSF.483-485.35
Citation Thomas Anderson et al., 2005, Materials Science Forum, 483-485, 35
Online since May, 2005
Authors Thomas Anderson, Donovan L. Barrett, J. Chen, Ejiro Emorhokpor, A. Gupta, R.H. Hopkins, Andrew E. Souzis, C.D. Tanner, Murugesu Yoganathan, Ilya Zwieback
Keywords Point Defect, Resistivity, Semi-insulating (SI), Silicon Carbide (SiC), Sublimation Growth
Abstract

II-VI has developed an Advanced PVT (APVT) process for the growth of nominally undoped (vanadium-free) semi-insulating 2” and 3” diameter 6H-SiC crystals with room temperature resistivity up to 1010 W·cm. The process utilizes high-purity SiC source and employs special measures aimed at the reduction of the impurity background. The APVT-grown material demonstrates concentrations of B and N reduced to about 2·1015cm-3. Wafer resistivity has been studied and correlated with Schottky barrier capacitance, yielding the density of deep compensating centers in 6H-SiC in the low 1015 cm-3 range for both ntype and p-type material. The nearly equal density of deep donors and deep acceptors ndicates that the centers responsible for the intrinsic compensation can be amphoteric. TheEPR density of spins from free carbon vacancies is about 1014 cm-3. It is also hypothesized that impurity-vacancy complexes can be present in the undoped material and participate in compensation.

Full Paper PDF Get the full paper by clicking here

First page example

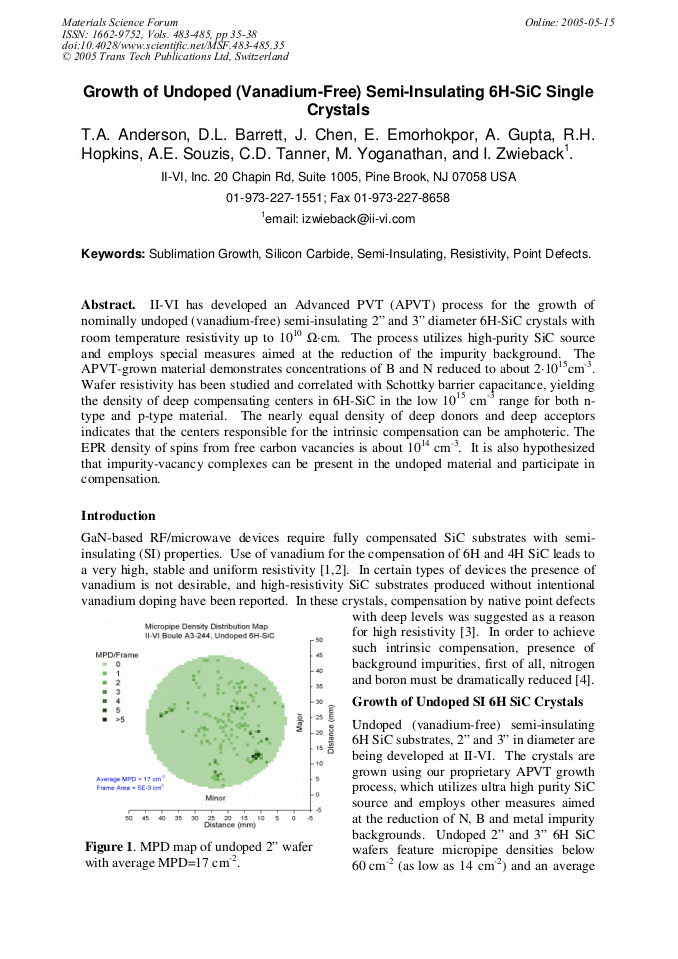

Preview of first page
