Orientation Maps Derived from TEM Diffraction Patterns Collected with an External CCD Camera

Journal Materials Science Forum (Volumes 495 - 497)
Volume Textures of Materials - ICOTOM 14
Edited by Paul Van Houtte and Leo Kestens
Pages 197-202
DOI 10.4028/www.scientific.net/MSF.495-497.197
Citation Edgar F. Rauch et al., 2005, Materials Science Forum, 495-497, 197
Online since September, 2005
Authors Edgar F. Rauch, A. Duft
Keywords Electron Diffraction (ED), Pattern Recognition, Spot Patterns, TEM
Abstract

An automatic crystallographic orientation indexing procedure is developed for transmission electron microscopes. The numerical identification is performed by mapping the spot diffraction patterns with pre-calculated templates. The diffraction patterns are acquired thanks to an external CCD camera that points to the fluorescent screen through the TEM window. Orientation maps with spatial resolution better than 10 nm were obtained with this low cost equipment.

Full Paper PDF Get the full paper by clicking here

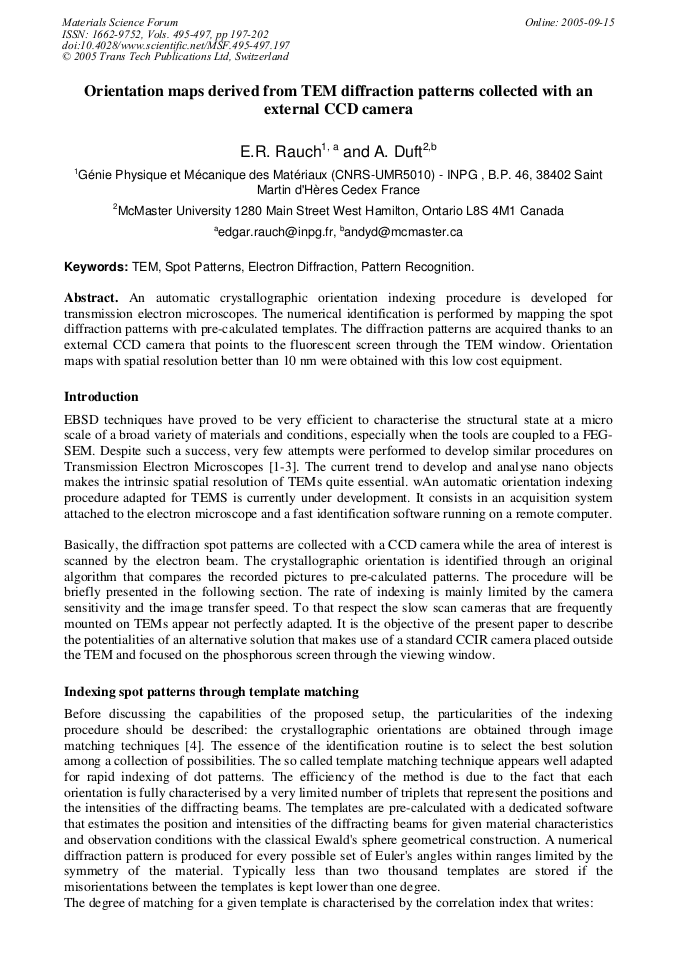

First page example
