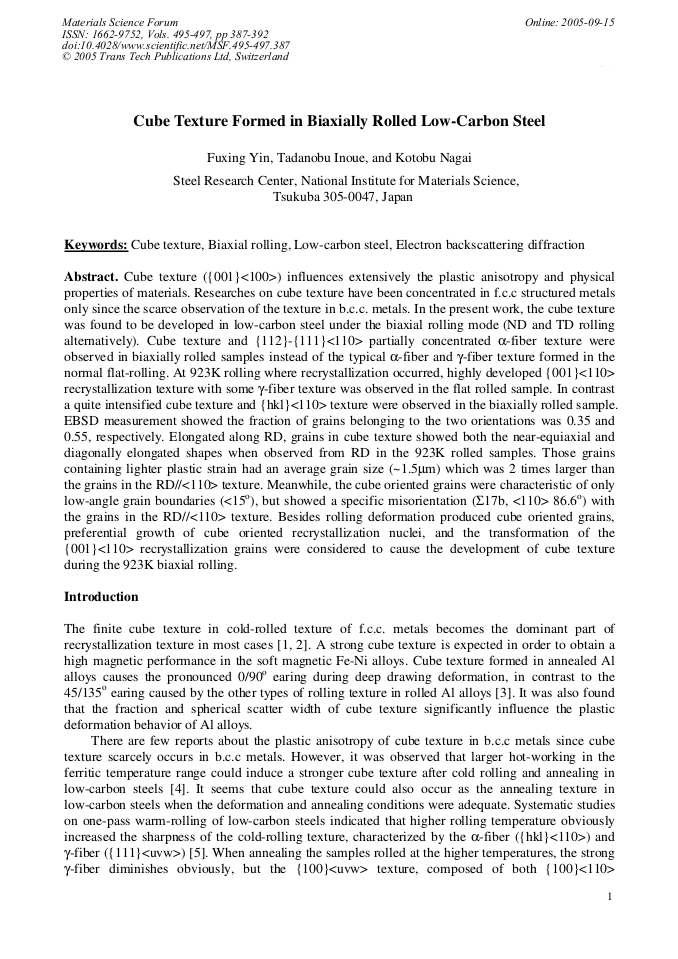

Paper Title:
Cube Texture Formed in Biaxially Rolled Low-Carbon Steel
  Abstract

Cube texture ({001}<100>) influences extensively the plastic anisotropy and physical properties of materials. Researches on cube texture have been concentrated in f.c.c structured metals only since the scarce observation of the texture in b.c.c. metals. In the present work, the cube texture was found to be developed in low-carbon steel under the biaxial rolling mode (ND and TD rolling alternatively). Cube texture and {112}-{111}<110> partially concentrated a-fiber texture were observed in biaxially rolled samples instead of the typical a-fiber and g-fiber texture formed in the normal flat-rolling. At 923K rolling where recrystallization occurred, highly developed {001}<110> recrystallization texture with some g-fiber texture was observed in the flat rolled sample. In contrast a quite intensified cube texture and {hkl}<110> texture were observed in the biaxially rolled sample. EBSD measurement showed the fraction of grains belonging to the two orientations was 0.35 and 0.55, respectively. Elongated along RD, grains in cube texture showed both the near-equiaxial and diagonally elongated shapes when observed from RD in the 923K rolled samples. Those grains containing lighter plastic strain had an average grain size (~1.5µm) which was 2 times larger than the grains in the RD//<110> texture. Meanwhile, the cube oriented grains were characteristic of only low-angle grain boundaries (<15o), but showed a specific misorientation (S17b, <110> 86.6o) with the grains in the RD//<110> texture. Besides rolling deformation produced cube oriented grains, preferential growth of cube oriented recrystallization nuclei, and the transformation of the {001}<110> recrystallization grains were considered to cause the development of cube texture during the 923K biaxial rolling.

  Info
Periodical
Materials Science Forum (Volumes 495-497)
Edited by
Paul Van Houtte and Leo Kestens
Pages
387-392
DOI
10.4028/www.scientific.net/MSF.495-497.387
Citation
F. X. Yin, T. Inoue, K. Nagai, "Cube Texture Formed in Biaxially Rolled Low-Carbon Steel ", Materials Science Forum, Vols. 495-497, pp. 387-392, 2005
Online since
September 2005
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Meng Qi Yan, Ai Xue Sha, Wang Feng Zhang, Yu Hui Wang
Symposium S: Materials for Mechanical Engineering and Processing Technology
Abstract:The manufacturing processes of TC18 titanium alloy bar takes about 10 times forging. During forging, the β phase grain experiences a series...
263
Authors: Franz Berge, Thorsten Henseler, Christina Krbetschek, Madlen Ullmann, Rudolf Kawalla
Chapter 1: Metal Physics and Mechanics of Deformation Processes
Abstract:Magnesium and its alloys have high potential for lightweight applications in the automotive and aerospace industries. In order to design...
67
Authors: Kristián Máthis, Jan Čapek, Bjørn Clausen, Tobias Panzner
Chapter 8: Advanced Experimental and Theoretical Methods Investigation of Properties and Microstructure
Abstract:The evolution of deformation mechanisms in randomly textured magnesium alloy during uniaxial and biaxial mechanical tests has been monitored...
427
