Paper Title:

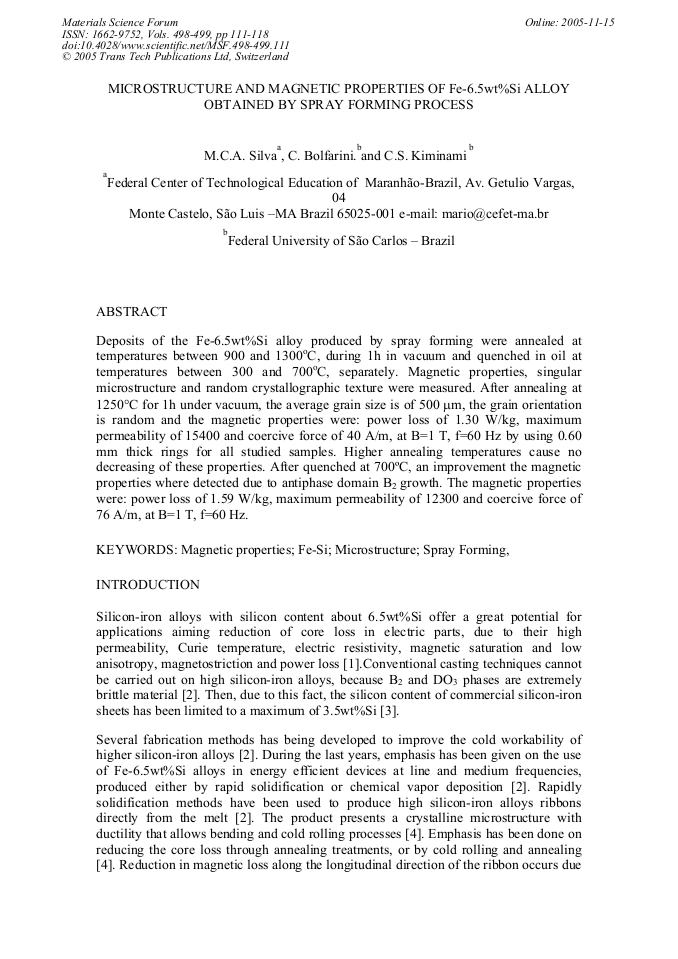

Microstructure and Magnetic Properties of Fe-6.5wt%Si Alloy Obtained by Spray Forming Process
  Abstract

Deposits of the Fe-6.5wt%Si alloy produced by spray forming were annealed at temperatures between 900 and 1300oC, during 1h in vacuum and quenched in oil at temperatures between 300 and 700oC, separately. Magnetic properties, singular microstructure and random crystallographic texture were measured. After annealing at 1250°C for 1h under vacuum, the average grain size is of 500 μm, the grain orientation is random and the magnetic properties were: power loss of 1.30 W/kg, maximum permeability of 15400 and coercive force of 40 A/m, at B=1 T, f=60 Hz by using 0.60 mm thick rings for all studied samples. Higher annealing temperatures cause no decreasing of these properties. After quenched at 700°C, an improvement the magnetic properties where detected due to antiphase domain B2 growth. The magnetic properties were: power loss of 1.59 W/kg, maximum permeability of 12300 and coercive force of 76 A/m, at B=1 T, f=60 Hz.

  Info
Periodical
Materials Science Forum (Volumes 498-499)
Edited by
Lucio Salgado and Francisco Ambrozio Filho
Pages
111-118
DOI
10.4028/www.scientific.net/MSF.498-499.111
Citation
M. C. A. da Silva, C. Bolfarini, C. S. Kiminami, "Microstructure and Magnetic Properties of Fe-6.5wt%Si Alloy Obtained by Spray Forming Process", Materials Science Forum, Vols. 498-499, pp. 111-118, 2005
Online since
November 2005
