Paper Title:

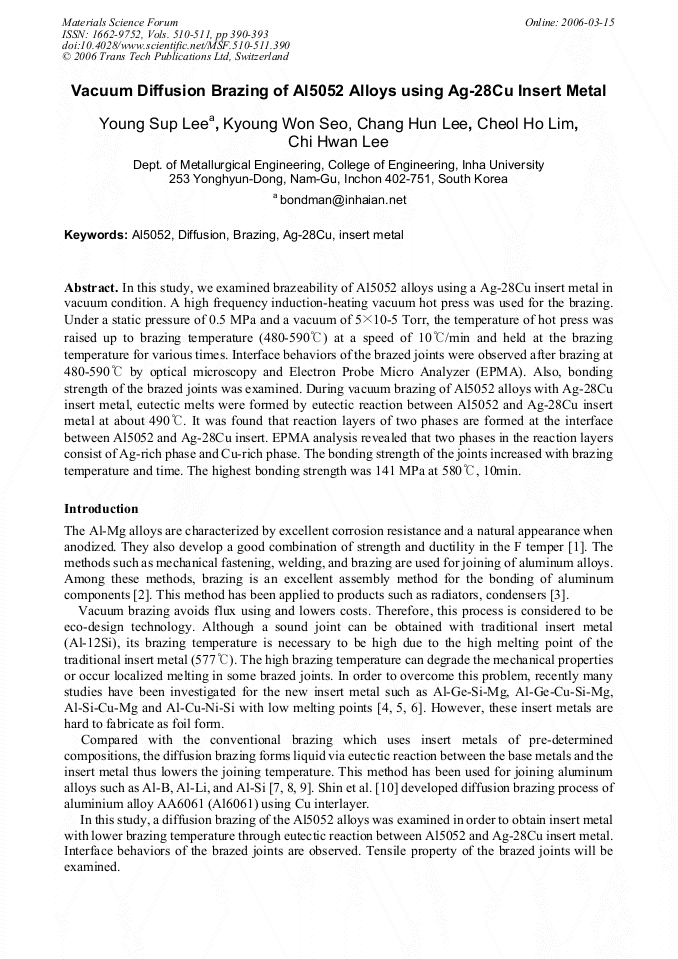

Vacuum Diffusion Brazing of Al5052 Alloys Using Ag-28Cu Insert Metal
  Abstract

In this study, we examined brazeability of Al5052 alloys using a Ag-28Cu insert metal in vacuum condition. A high frequency induction-heating vacuum hot press was used for the brazing. Under a static pressure of 0.5 MPa and a vacuum of 5×10-5 Torr, the temperature of hot press was raised up to brazing temperature (480-590°C) at a speed of 10°C/min and held at the brazing temperature for various times. Interface behaviors of the brazed joints were observed after brazing at 480-590°C by optical microscopy and Electron Probe Micro Analyzer (EPMA). Also, bonding strength of the brazed joints was examined. During vacuum brazing of Al5052 alloys with Ag-28Cu insert metal, eutectic melts were formed by eutectic reaction between Al5052 and Ag-28Cu insert metal at about 490°C. It was found that reaction layers of two phases are formed at the interface between Al5052 and Ag-28Cu insert. EPMA analysis revealed that two phases in the reaction layers consist of Ag-rich phase and Cu-rich phase. The bonding strength of the joints increased with brazing temperature and time. The highest bonding strength was 141 MPa at 580°C, 10min.

  Info
Periodical
Materials Science Forum (Volumes 510-511)
Edited by
Hyung Sun Kim, Yu Bao Li and Soo Wohn Lee
Pages
390-393
DOI
10.4028/www.scientific.net/MSF.510-511.390
Citation
Y. S. Lee, K. W. Seo, C.H. Lee, C. H. Lim, C.H. Lee, "Vacuum Diffusion Brazing of Al5052 Alloys Using Ag-28Cu Insert Metal", Materials Science Forum, Vols. 510-511, pp. 390-393, 2006
Online since
March 2006
