Paper Title:
Design and Analysis of the PZT-Based Piezoelectric Transformer

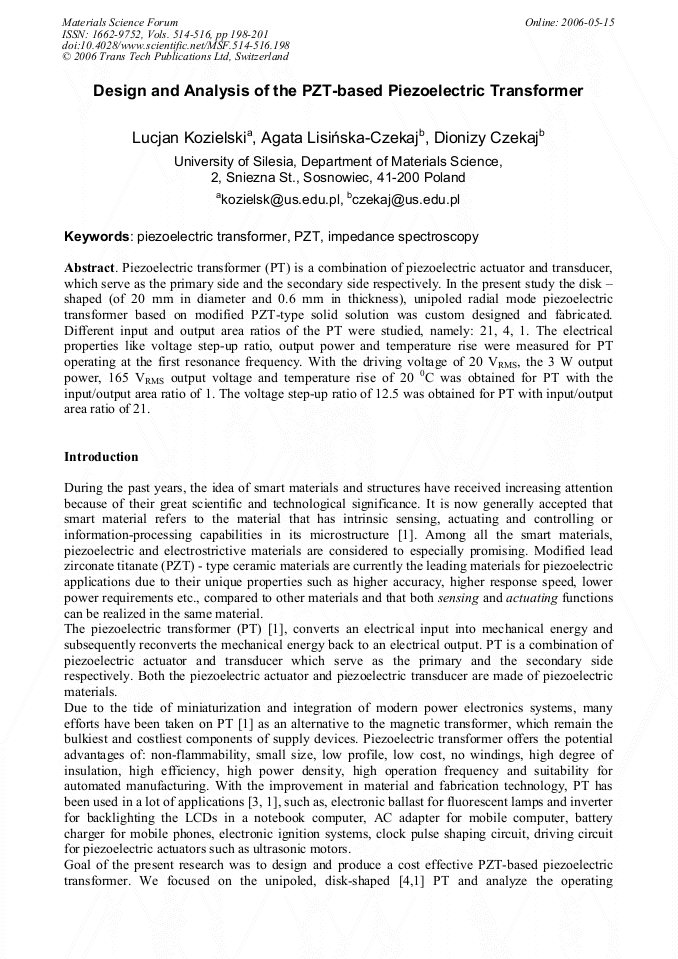

  Abstract

Piezoelectric transformer (PT) is a combination of piezoelectric actuator and transducer, which serve as the primary side and the secondary side respectively. In the present study the disk – shaped (of 20 mm in diameter and 0.6 mm in thickness), unipoled radial mode piezoelectric transformer based on modified PZT-type solid solution was custom designed and fabricated. Different input and output area ratios of the PT were studied, namely: 21, 4, 1. The electrical properties like voltage step-up ratio, output power and temperature rise were measured for PT operating at the first resonance frequency. With the driving voltage of 20 VRMS, the 3 W output power, 165 VRMS output voltage an temperature rise of 20 0C was obtained for PT with the input/output area ratio of 1. The voltage step-up ratio of 12.5 was obtained for PT with input/output area ratio of 21.

  Info
Periodical
Materials Science Forum (Volumes 514-516)
Edited by
Paula Maria Vilarinho
Pages
198-201
DOI
10.4028/www.scientific.net/MSF.514-516.198
Citation
L. Kozielski, A. Lisińska-Czekaj, D. Czekaj, "Design and Analysis of the PZT-Based Piezoelectric Transformer ", Materials Science Forum, Vols. 514-516, pp. 198-201, 2006
Online since
May 2006
