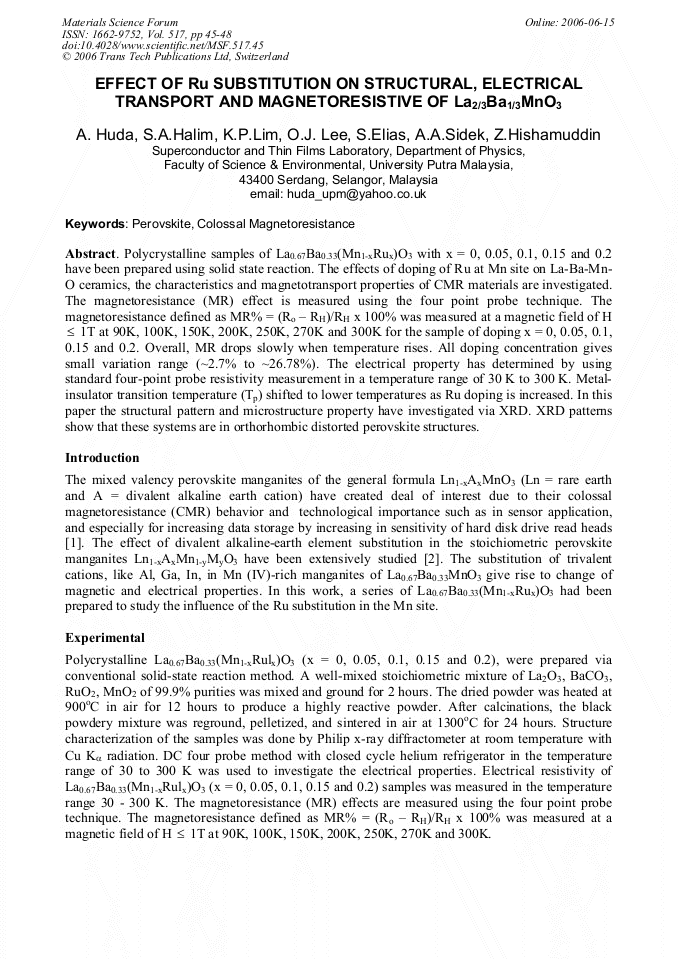

Effect of Ru Substitution on Structural, Electrical Transport and Magnetoresistive of La_2/3Ba_1/3MnO₃

Polycrystalline samples of La0.67Ba0.33(Mn1-xRux)O3 with x = 0, 0.05, 0.1, 0.15 and 0.2 have been prepared using solid state reaction. The effects of doping of Ru at Mn site on La-Ba-Mn- O ceramics, the characteristics and magnetotransport properties of CMR materials are investigated. The magnetoresistance (MR) effect is measured using the four point probe technique. The magnetoresistance defined as MR% = (Ro – RH)/RH x 100% was measured at a magnetic field of H ≤ 1T at 90K, 100K, 150K, 200K, 250K, 270K and 300K for the sample of doping x = 0, 0.05, 0.1, 0.15 and 0.2. Overall, MR drops slowly when temperature rises. All doping concentration gives small variation range (~2.7% to ~26.78%). The electrical property has determined by using standard four-point probe resistivity measurement in a temperature range of 30 K to 300 K. Metalinsulator transition temperature (Tp) shifted to lower temperatures as Ru doping is increased. In this paper the structural pattern and microstructure property have investigated via XRD. XRD patterns show that these systems are in orthorhombic distorted perovskite structures.
