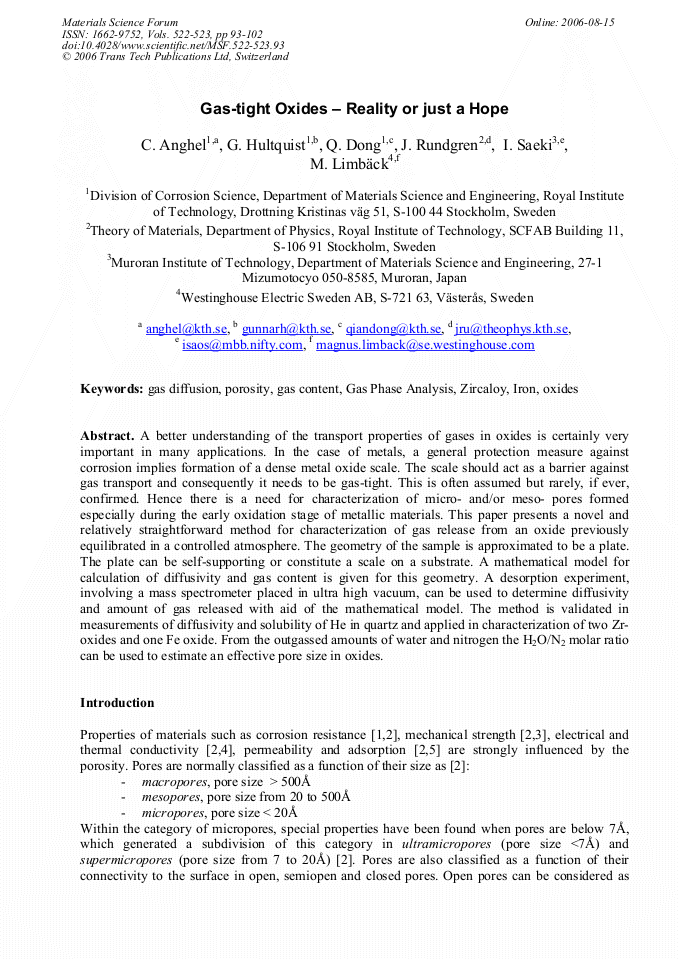

A better understanding of the transport properties of gases in oxides is certainly very important in many applications. In the case of metals, a general protection measure against corrosion implies formation of a dense metal oxide scale. The scale should act as a barrier against gas transport and consequently it needs to be gas-tight. This is often assumed but rarely, if ever, confirmed. Hence there is a need for characterization of micro- and/or meso- pores formed especially during the early oxidation stage of metallic materials. This paper presents a novel and relatively straightforward method for characterization of gas release from an oxide previously equilibrated in a controlled atmosphere. The geometry of the sample is approximated to be a plate. The plate can be self-supporting or constitute a scale on a substrate. A mathematical model for calculation of diffusivity and gas content is given for this geometry. A desorption experiment, involving a mass spectrometer placed in ultra high vacuum, can be used to determine diffusivity and amount of gas released with aid of the mathematical model. The method is validated in measurements of diffusivity and solubility of He in quartz and applied in characterization of two Zroxides and one Fe oxide. From the outgassed amounts of water and nitrogen the H2O/N2 molar ratio can be used to estimate an effective pore size in oxides.
