Paper Title:

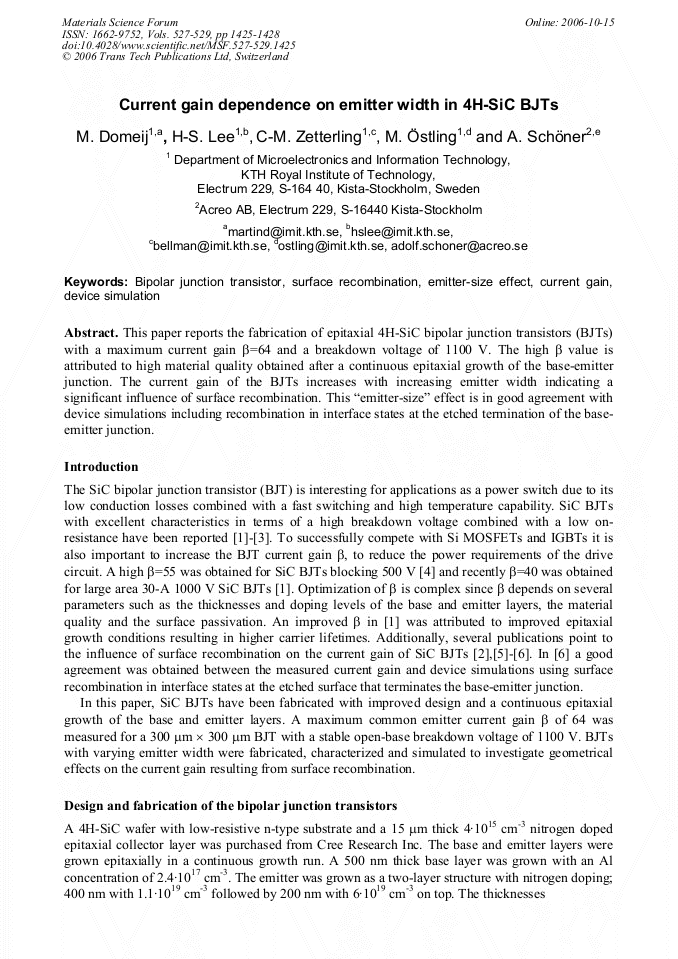

Current Gain Dependence on Emitter Width in 4H-SiC BJTs
  Abstract

This paper reports the fabrication of epitaxial 4H-SiC bipolar junction transistors (BJTs) with a maximum current gain β=64 and a breakdown voltage of 1100 V. The high β value is attributed to high material quality obtained after a continuous epitaxial growth of the base-emitter junction. The current gain of the BJTs increases with increasing emitter width indicating a significant influence of surface recombination. This “emitter-size” effect is in good agreement with device simulations including recombination in interface states at the etched termination of the baseemitter junction.

  Info
Periodical
Materials Science Forum (Volumes 527-529)
Edited by
Robert P. Devaty, David J. Larkin and Stephen E. Saddow
Pages
1425-1428
DOI
10.4028/www.scientific.net/MSF.527-529.1425
Citation
M. Domeij, H. S. Lee, C. M. Zetterling, M. Östling, A. Schöner, "Current Gain Dependence on Emitter Width in 4H-SiC BJTs", Materials Science Forum, Vols. 527-529, pp. 1425-1428, 2006
Online since
October 2006
Export
Price
$32.00
Share
