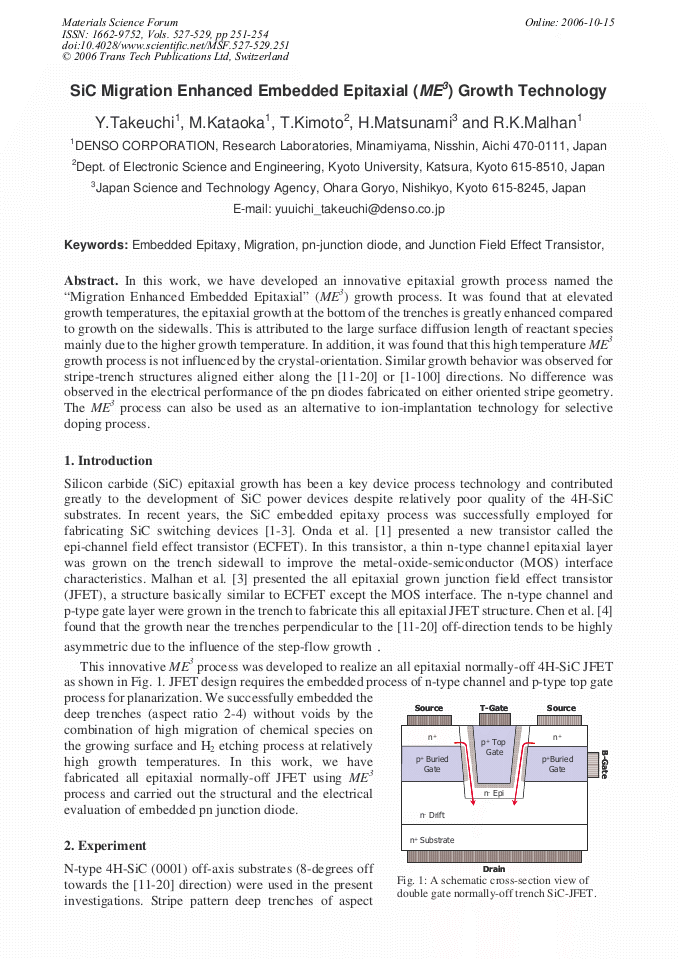

In this work, we have developed an innovative epitaxial growth process named the “Migration Enhanced Embedded Epitaxial” (ME3) growth process. It was found that at elevated growth temperatures, the epitaxial growth at the bottom of the trenches is greatly enhanced compared to growth on the sidewalls. This is attributed to the large surface diffusion length of reactant species mainly due to the higher growth temperature. In addition, it was found that this high temperature ME3 growth process is not influenced by the crystal-orientation. Similar growth behavior was observed for stripe-trench structures aligned either along the [11-20] or [1-100] directions. No difference was observed in the electrical performance of the pn diodes fabricated on either oriented stripe geometry. The ME3 process can also be used as an alternative to ion-implantation technology for selective doping process.
