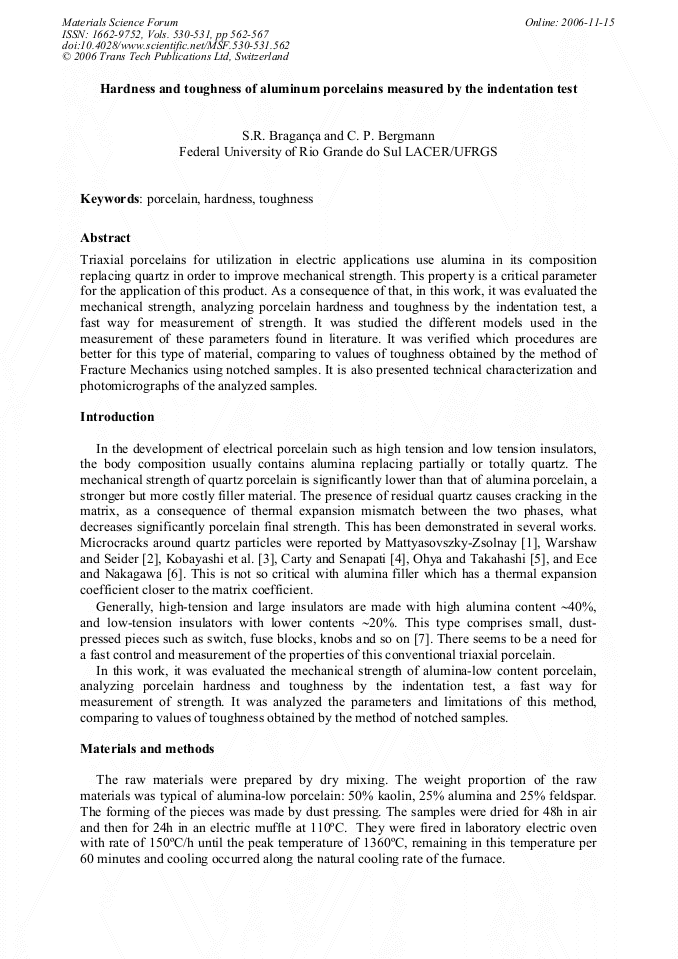

Paper Title:
Hardness and Toughness of Aluminum Porcelains Measured by the Indentation Test
  Abstract

Triaxial porcelains for utilization in electric applications use alumina in its composition replacing quartz in order to improve mechanical strength. This property is a critical parameter for the application of this product. As a consequence of that, in this work, it was evaluated the mechanical strength, analyzing porcelain hardness and toughness by the indentation test, a fast way for measurement of strength. It was studied the different models used in the measurement of these parameters found in literature. It was verified which procedures are better for this type of material, comparing to values of toughness obtained by the method of Fracture Mechanics using notched samples. It is also presented technical characterization and photomicrographs of the analyzed samples.

  Info
Periodical
Materials Science Forum (Volumes 530-531)
Edited by
Lucio Salgado and Francisco Ambrozio Filho
Pages
562-567
DOI
10.4028/www.scientific.net/MSF.530-531.562
Citation
S.R. Bragança, C.P. Bergmann, "Hardness and Toughness of Aluminum Porcelains Measured by the Indentation Test", Materials Science Forum, Vols. 530-531, pp. 562-567, 2006
Online since
November 2006
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Oleg Vasylkiv, Yoshio Sakka, Valeriy Skorokhod
2347
Authors: Eniko Volceanov, Ştefania Motoc, Adrian Volceanov, Rodica M. Neagu, Cristian Coman
2283
Authors: Oleg Vasylkiv, Yoshio Sakka, Valeriy Skorokhod
Abstract:The 0.75 to 3 mol% Y2O3-stabilized tetragonal ZrO2 and Al2O3/Y-TZP nano-composite ceramics with 0.2 to 0.7 wt% of alumina were produced by a...
615
Authors: Isabel M. Martins, Claudino Xavier, Maria Helena Mendonça, Manuela Oliveira
Abstract:Previous studies had shown that a promising material could be obtained by mixing aluminium-rich sludge with slate powder (with Al2O3:SiO2...
1695
Authors: Jie Liu, Long Quan Shao, Yuan Fu Yi, Bin Deng, Wei Wei Zhang, Li Min Dong, Hong Chen Liu, Jie Mo Tian, Ning Wen
Abstract:Objective: To study the effects of presintering temperature and temperature rise speed on the physical and mechanical properties of...
549
