Numerical Modeling of RF Magnetron Sputtering with Metallic or Dielectric Target

Journal Materials Science Forum (Volume 555)
Volume Research Trends in Contemporary Materials Science
Edited by Dragan P. Uskoković, Slobodan K. Milonjić and Dejan I. Raković
Pages 65-71
DOI 10.4028/www.scientific.net/MSF.555.65
Citation T. Makabe et al., 2007, Materials Science Forum, 555, 65
Online since September, 2007
Authors T. Makabe, T. Yagisawa
Keywords Physical Sputtering, RF Magnetron Plasma, Target Erosion Profile
Abstract

A self-consistent modeling of two-dimensional and temporal (2D-t) structures of RF magnetron plasma with a metallic (copper) and a dielectric (SiO2) target is performed at 5 mTorr in argon by using plasma hybrid model consisting of a particle-in-cell/Monte Carlo (PIC/MC) simulation for electrons and the relaxation continuum (RCT) model for ions. The erosion profiles of both targets are numerically predicted through the flux velocity distribution of ions incident on the surface. The mechanism of plasma maintenance in a dielectric target is quite different from that in a metallic one. Two major differences exist in an erosion profile between both targets. One is the presence of dual peaks in the erosion profile of the dielectric target. The other is the discrepancy in the position of the maxima between incident ion flux and erosion depth on the dielectric target. These are direct influences of the radially localized structure in an interfacial sheath based on the charge accumulation on a dielectric surface.

Full Paper PDF Get the full paper by clicking here

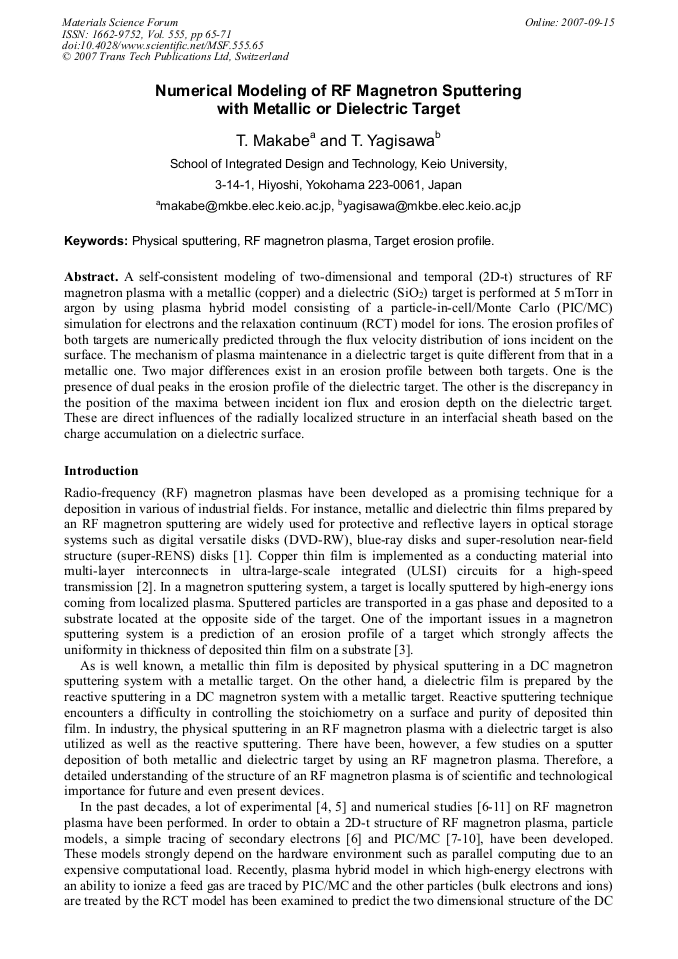

First page example

Preview of first page
