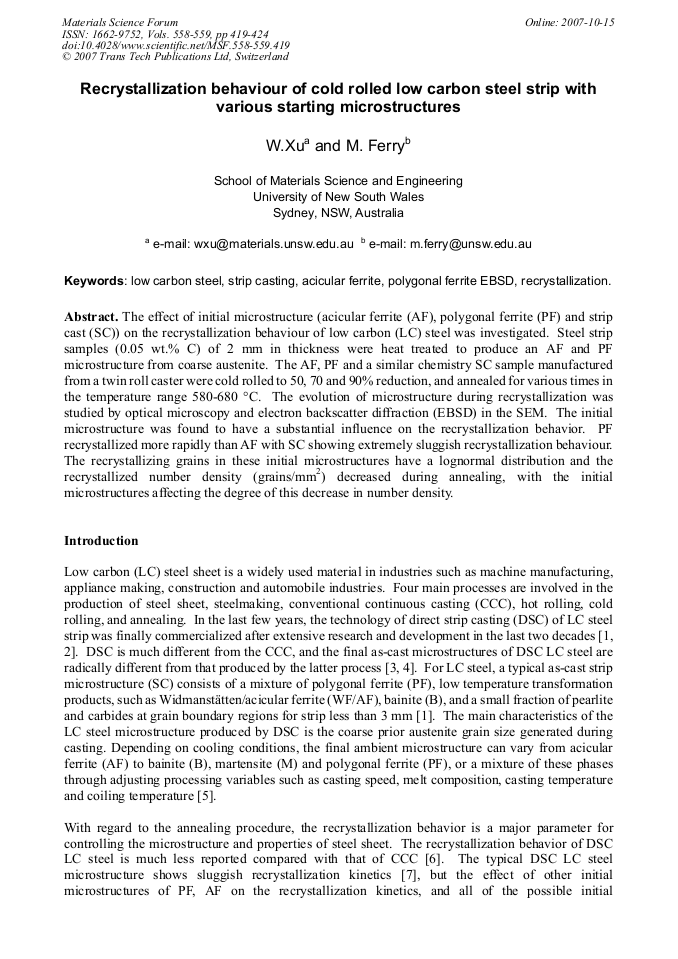

The effect of initial microstructure (acicular ferrite (AF), polygonal ferrite (PF) and strip cast (SC)) on the recrystallization behaviour of low carbon (LC) steel was investigated. Steel strip samples (0.05 wt.% C) of 2 mm in thickness were heat treated to produce an AF and PF microstructure from coarse austenite. The AF, PF and a similar chemistry SC sample manufactured from a twin roll caster were cold rolled to 50, 70 and 90% reduction, and annealed for various times in the temperature range 580-680 °C. The evolution of microstructure during recrystallization was studied by optical microscopy and electron backscatter diffraction (EBSD) in the SEM. The initial microstructure was found to have a substantial influence on the recrystallization behavior. PF recrystallized more rapidly than AF with SC showing extremely sluggish recrystallization behaviour. The recrystallizing grains in these initial microstructures have a lognormal distribution and the recrystallized number density (grains/mm2) decreased during annealing, with the initial microstructures affecting the degree of this decrease in number density.
