Paper Title:
Physical Properties of Li2Pd3B and Li2Pt3B Superconductors
  Abstract

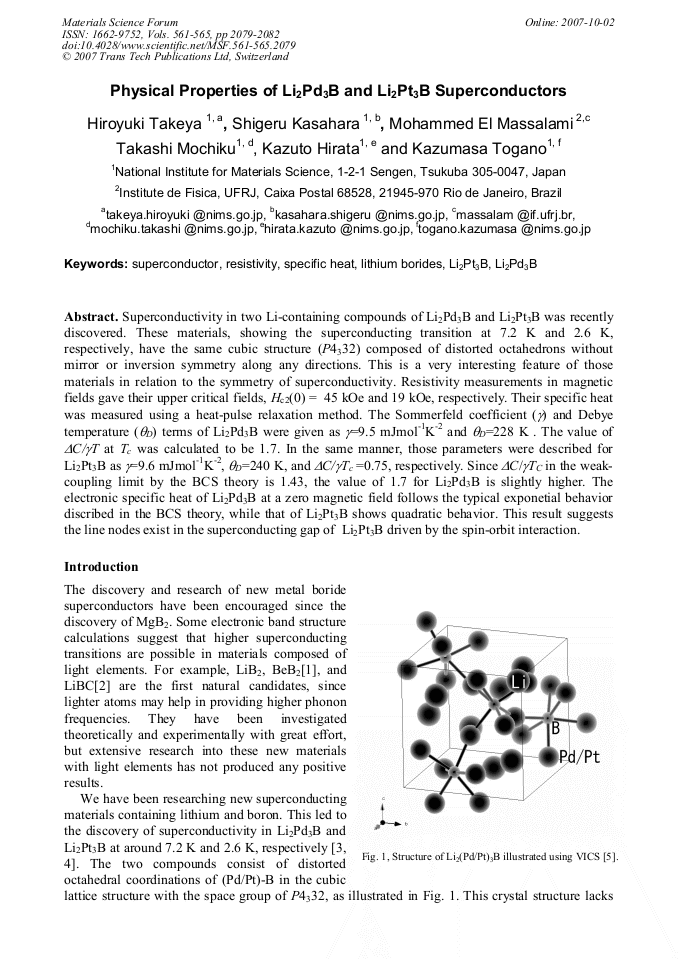

Superconductivity in two Li-containing compounds of Li2Pd3B and Li2Pt3B was recently discovered. These materials, showing the superconducting transition at 7.2 K and 2.6 K, respectively, have the same cubic structure (P4332) composed of distorted octahedrons without mirror or inversion symmetry along any directions. This is a very interesting feature of those materials in relation to the symmetry of superconductivity. Resistivity measurements in magnetic fields gave their upper critical fields, Hc2(0) = 45 kOe and 19 kOe, respectively. Their specific heat was measured using a heat-pulse relaxation method. The Sommerfeld coefficient (γ) and Debye temperature (θD) terms of Li2Pd3B were given as γ=9.5 mJmol-1K-2 and θD=228 K . The value of C/γT at Tc was calculated to be 1.7. In the same manner, those parameters were described for Li2Pt3B as γ=9.6 mJmol-1K-2, θD=240 K, and C/γTc =0.75, respectively. Since C/γTC in the weakcoupling limit by the BCS theory is 1.43, the value of 1.7 for Li2Pd3B is slightly higher. The electronic specific heat of Li2Pd3B at a zero magnetic field follows the typical exponetial behavior discribed in the BCS theory, while that of Li2Pt3B shows quadratic behavior. This result suggests the line nodes exist in the superconducting gap of Li2Pt3B driven by the spin-orbit interaction.

  Info
Periodical
Materials Science Forum (Volumes 561-565)
Main Theme
Edited by
Young Won Chang, Nack J. Kim and Chong Soo Lee
Pages
2079-2082
DOI
10.4028/www.scientific.net/MSF.561-565.2079
Citation
H. Takeya, S. Kasahara, M. El Massalami, T. Mochiku, K. Hirata, K. Togano, "Physical Properties of Li2Pd3B and Li2Pt3B Superconductors", Materials Science Forum, Vols. 561-565, pp. 2079-2082, 2007
Online since
October 2007
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Mirosław M. Bućko, Joanna Polnar, Janusz Przewoźnik, Jan Żukrowski, Czesław Kapusta
Abstract:The multiferroic Aurivillius phases in the Bi-Fe-Ti-O system are built from alternate (Bi2O2)2+ and (Bin-1XnO3n+1)2 layers, where X = Fe3+,...
170
Authors: N.V. Baranov, N.V. Selezneva, Valery G. Pleshchev, N.V. Mushnikov, V.I. Maksimov
Abstract:The intercalated compound Fe0.5TiSe2 has been studied by means of X-ray, neutron diffraction, electrical resistivity and magnetization...
157
  | Authors: Andrey V. Svalov, V.O. Vas’kovskiy, José M. Barandiarán, K.G. Balymov, A.N. Sorokin, Iñaki Orue, A. Larrañaga, N.N. Schegoleva, G.V. Kurlyandskaya
Abstract:Structure and magnetic properties of nanoscale [Gd/Ti]n multilayers prepared by rf-sputtering are studied. It is found that the decrease in...
281
Authors: A.V. Tsvyashchenko, V.A. Sidorov, L.N. Fomicheva, V.N. Krasnorussky, R.A. Sadykov, J.D. Thompson, K. Gofryk, F. Ronning, V.Y. Ivanov
III. Soft and Hard Magnetic Materials
Abstract:Samples of MnGe and CoGe having cubic B20 structure were prepared at high pressure. Magnetic measurements showed that CoGe is a Pauli...
225
Authors: S.A. Nikitin, Anatoly E. Bogdanov, Ioulia A. Ovchenkova, Evgeniy A. Ovchenkov, Andrey V. Smirnov, Alexander V. Morozkin
Chapter 3: Magnetic Alloys and Magnetocaloric Effect
Abstract:The purpose of this work was the complex investigation of magnetic, magnetocaloric and magnetoelastic properties of compounds based on...
208
