Paper Title:

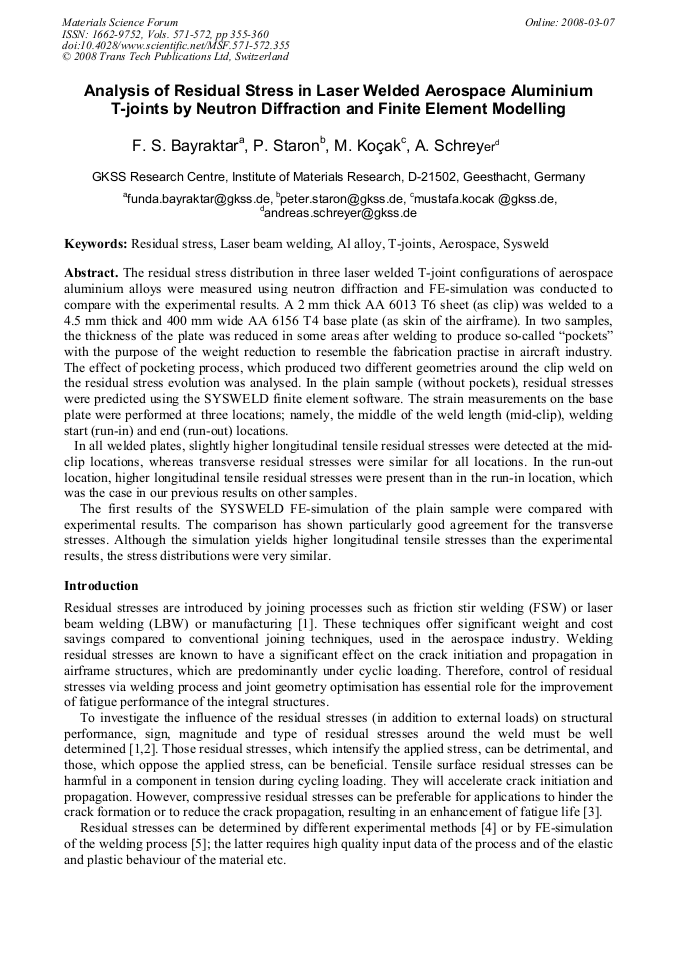

Analysis of Residual Stress in Laser Welded Aerospace Aluminium T-Joints by Neutron Diffraction and Finite Element Modelling
  Abstract

The residual stress distribution in three laser welded T-joint configurations of aerospace aluminium alloys were measured using neutron diffraction and FE-simulation was conducted to compare with the experimental results. A 2 mm thick AA 6013 T6 sheet (as clip) was welded to a 4.5 mm thick and 400 mm wide AA 6156 T4 base plate (as skin of the airframe). In two samples, the thickness of the plate was reduced in some areas after welding to produce so-called “pockets” with the purpose of the weight reduction to resemble the fabrication practise in aircraft industry. The effect of pocketing process, which produced two different geometries around the clip weld on the residual stress evolution was analysed. In the plain sample (without pockets), residual stresses were predicted using the SYSWELD finite element software. The strain measurements on the base plate were performed at three locations; namely, the middle of the weld length (mid-clip), welding start (run-in) and end (run-out) locations. In all welded plates, slightly higher longitudinal tensile residual stresses were detected at the midclip locations, whereas transverse residual stresses were similar for all locations. In the run-out location, higher longitudinal tensile residual stresses were present than in the run-in location, which was the case in our previous results on other samples. The first results of the SYSWELD FE-simulation of the plain sample were compared with experimental results. The comparison has shown particularly good agreement for the transverse stresses. Although the simulation yields higher longitudinal tensile stresses than the experimental results, the stress distributions were very similar.

  Info
Periodical
Materials Science Forum (Volumes 571-572)
Edited by
A. R. Pyzalla, A. Borbély and H.-P. Degischer
Pages
355-360
DOI
10.4028/www.scientific.net/MSF.571-572.355
Citation
F. S. Bayraktar, P. Staron, M. Koçak, A. Schreyer, "Analysis of Residual Stress in Laser Welded Aerospace Aluminium T-Joints by Neutron Diffraction and Finite Element Modelling ", Materials Science Forum, Vols. 571-572, pp. 355-360, 2008
Online since
March 2008
