Paper Title:

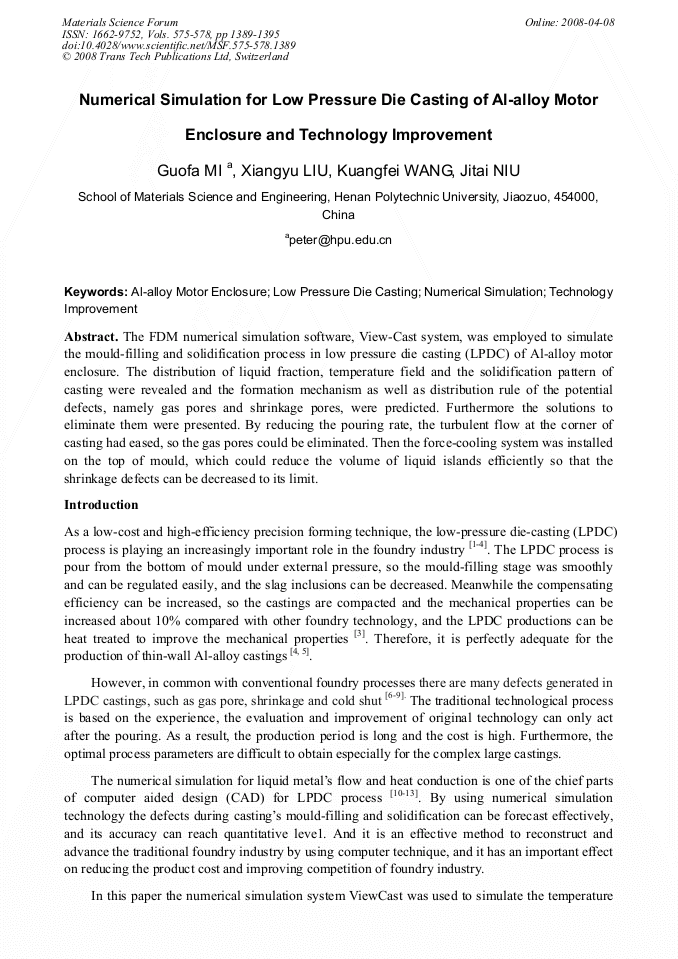

Numerical Simulation for Low Pressure Die Casting of Al-Alloy Motor Enclosure and Technology Improvement
  Abstract

The FDM numerical simulation software, View-Cast system, was employed to simulate the mould-filling and solidification process in low pressure die casting (LPDC) of Al-alloy motor enclosure. The distribution of liquid fraction, temperature field and the solidification pattern of casting were revealed and the formation mechanism as well as distribution rule of the potential defects, namely gas pores and shrinkage pores, were predicted. Furthermore the solutions to eliminate them were presented. By reducing the pouring rate, the turbulent flow at the corner of casting had eased, so the gas pores could be eliminated. Then the force-cooling system was installed on the top of mould, which could reduce the volume of liquid islands efficiently so that the shrinkage defects can be decreased to its limit.

  Info
Periodical
Materials Science Forum (Volumes 575-578)
Edited by
Jitai NIU, Zuyan LIU, Cheng JIN and Guangtao Zhou
Pages
1389-1395
DOI
10.4028/www.scientific.net/MSF.575-578.1389
Citation
G. F. Mi, X. Y. Liu, K. F. Wang, J. T. Niu, "Numerical Simulation for Low Pressure Die Casting of Al-Alloy Motor Enclosure and Technology Improvement", Materials Science Forum, Vols. 575-578, pp. 1389-1395, 2008
Online since
April 2008
Export
Price
$32.00
