Paper Title:

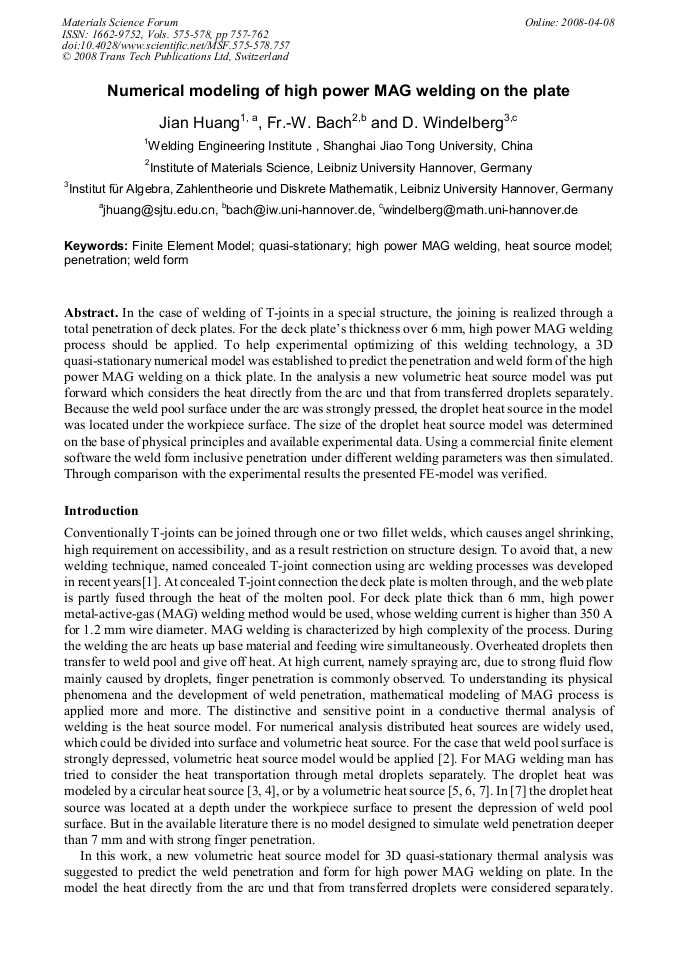

Numerical Modeling of High Power MAG Welding on the Plate
  Abstract

In the case of welding of T-joints in a special structure, the joining is realized through a total penetration of deck plates. For the deck plate’s thickness over 6 mm, high power MAG welding process should be applied. To help experimental optimizing of this welding technology, a 3D quasi-stationary numerical model was established to predict the penetration and weld form of the high power MAG welding on a thick plate. In the analysis a new volumetric heat source model was put forward which considers the heat directly from the arc und that from transferred droplets separately. Because the weld pool surface under the arc was strongly pressed, the droplet heat source in the model was located under the workpiece surface. The size of the droplet heat source model was determined on the base of physical principles and available experimental data. Using a commercial finite element software the weld form inclusive penetration under different welding parameters was then simulated. Through comparison with the experimental results the presented FE-model was verified.

  Info
Periodical
Materials Science Forum (Volumes 575-578)
Edited by
Jitai NIU, Zuyan LIU, Cheng JIN and Guangtao Zhou
Pages
757-762
DOI
10.4028/www.scientific.net/MSF.575-578.757
Citation
J. Huang, F. W. Bach, D. Windelberg, "Numerical Modeling of High Power MAG Welding on the Plate", Materials Science Forum, Vols. 575-578, pp. 757-762, 2008
Online since
April 2008
Export
Price
$32.00
