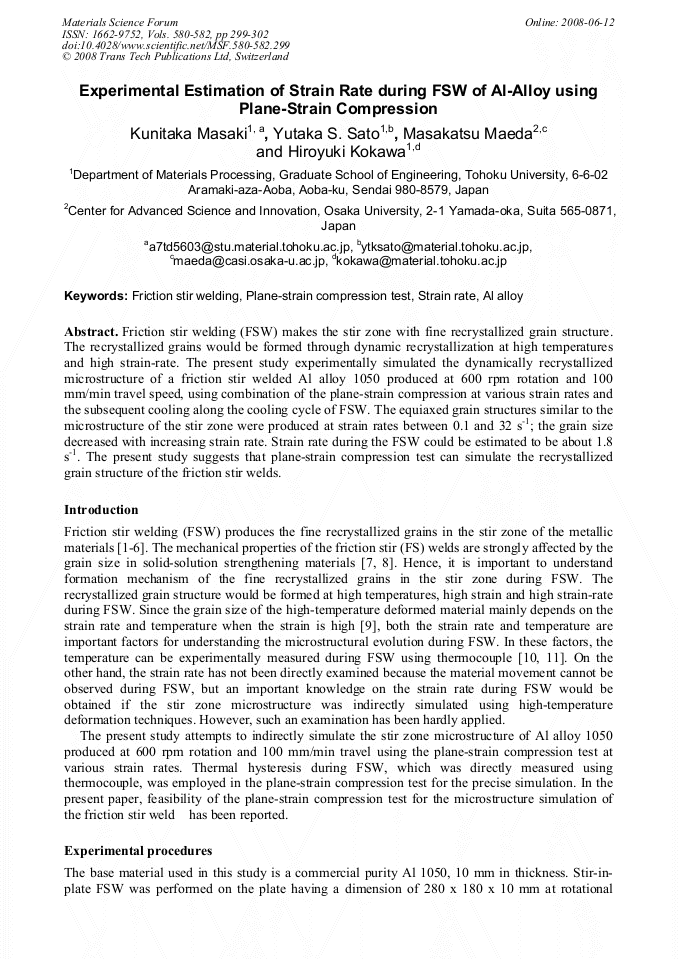

Paper Title:
Experimental Estimation of Strain Rate during FSW of Al-Alloy Using Plane-Strain Compression
  Abstract

Friction stir welding (FSW) makes the stir zone with fine recrystallized grain structure. The recrystallized grains would be formed through dynamic recrystallization at high temperatures and high strain-rate. The present study experimentally simulated the dynamically recrystallized microstructure of a friction stir welded Al alloy 1050 produced at 600 rpm rotation and 100 mm/min travel speed, using combination of the plane-strain compression at various strain rates and the subsequent cooling along the cooling cycle of FSW. The equiaxed grain structures similar to the microstructure of the stir zone were produced at strain rates between 0.1 and 32 s-1; the grain size decreased with increasing strain rate. Strain rate during the FSW could be estimated to be about 1.8 s-1. The present study suggests that plane-strain compression test can simulate the recrystallized grain structure of the friction stir welds.

  Info
Periodical
Materials Science Forum (Volumes 580-582)
Edited by
Changhee Lee, Jong-Bong Lee, Dong-Hwan Park and Suck-Joo Na
Pages
299-302
DOI
10.4028/www.scientific.net/MSF.580-582.299
Citation
K. Masaki, Y. S. Sato, M. Maeda, H. Kokawa, "Experimental Estimation of Strain Rate during FSW of Al-Alloy Using Plane-Strain Compression", Materials Science Forum, Vols. 580-582, pp. 299-302, 2008
Online since
June 2008
