HRTEM Analysis of AlN Layer Grown on 3C-SiC/Si Heteroepitaxial Substrates with Various Surface Orientations

Journal Materials Science Forum (Volumes 600 - 603)
Volume Silicon Carbide and Related Materials 2007
Edited by Akira Suzuki, Hajime Okumura, Tsunenobu Kimoto, Takashi Fuyuki, Kenji Fukuda and Shin-ichi Nishizawa
Pages 1317-1320
DOI 10.4028/www.scientific.net/MSF.600-603.1317
Citation Toshiyuki Isshiki et al., 2008, Materials Science Forum, 600-603, 1317
Online since September, 2008
Authors Toshiyuki Isshiki, Koji Nishio, Yoshihisa Abe, Jun Komiyama, Shunichi Suzuki, Hideo Nakanishi
Keywords Aluminium Nitride (AlN), High-Resolution TEM Investigation, Interface Structure, SiC Buffer Layer
Abstract

Epitaxial growth of AlN was carried out by MOVPE method on SiC/Si buffered substrates prepared by using various Si surfaces of (110), (211) and (001). Cross-sectional HRTEM analyses of the interfaces between SiC buffer layer and AlN epitaxial layer disclosed characteristic nanostructures related growth mechanism on the each substrate. In the case of Si(110) and Si(211) substrate, hexagonal AlN grew directly on SiC(111) plane with AlN(0001) plane parallel to it. In contrast, growth on Si(001) substrate gave complicate structure at AlN/SiC interface. Hexagonal AlN didn’t grow directly but cubic AlN appeared with a pyramidal shape on SiC(001). When the cubic AlN grew 10nm in height, structure of growing AlN crystal changed to hexagonal type on the pyramidal {111} planes of cubic AlN.

Full Paper PDF Get the full paper by clicking here

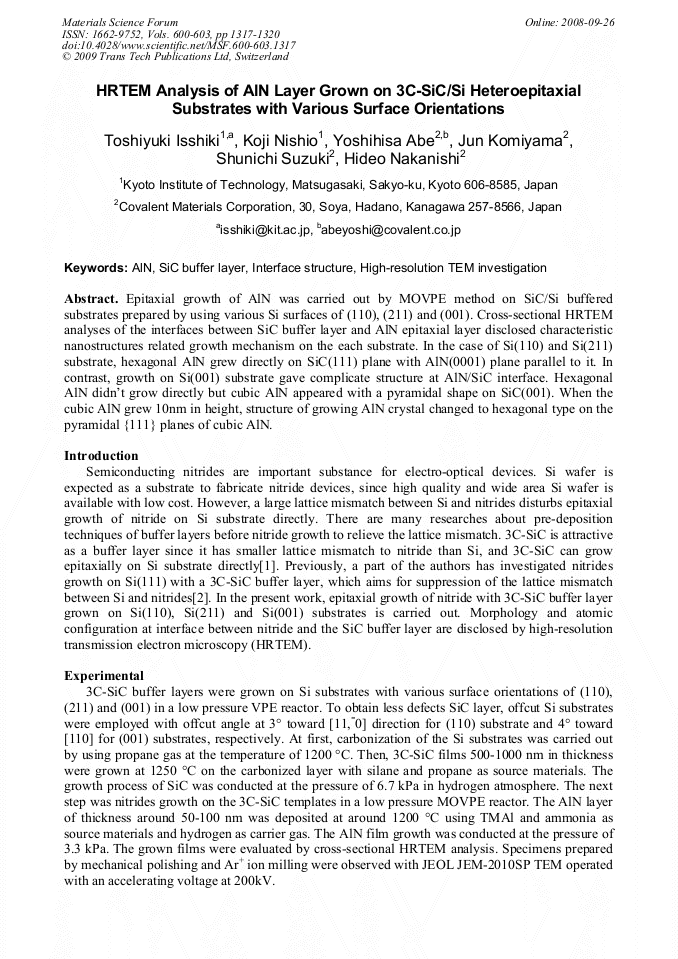

First page example

Preview of first page
