Paper Title:

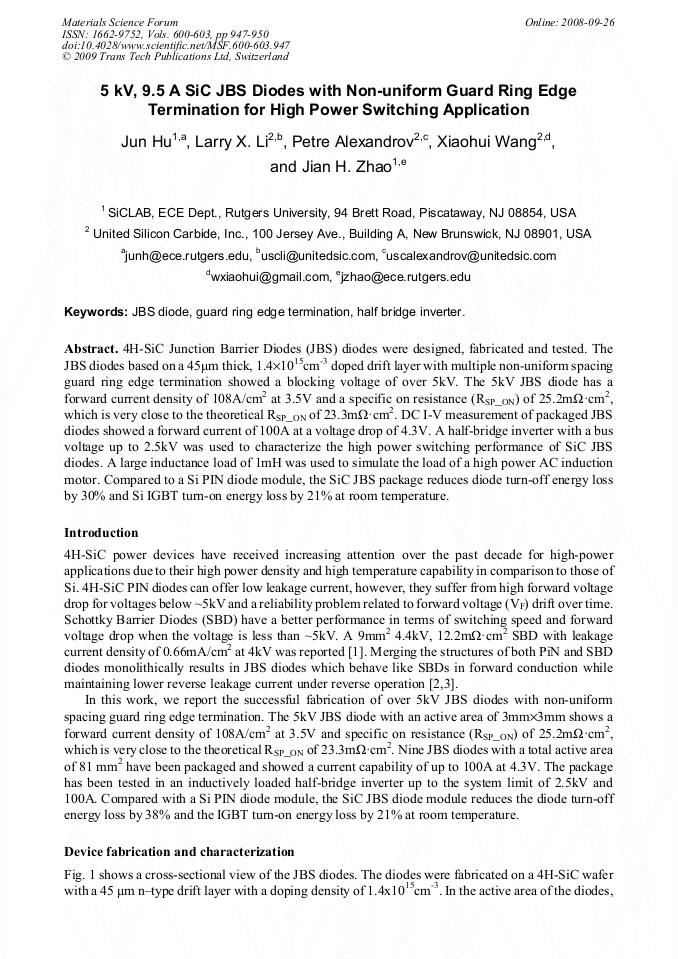

5 kV, 9.5 A SiC JBS Diodes with Non-Uniform Guard Ring Edge Termination for High Power Switching Application
  Abstract

4H-SiC Junction Barrier Diodes (JBS) diodes were designed, fabricated and tested. The JBS diodes based on a 45μm thick, 1.4×1015cm-3 doped drift layer with multiple non-uniform spacing guard ring edge termination showed a blocking voltage of over 5kV. The 5kV JBS diode has a forward current density of 108A/cm2 at 3.5V and a specific on resistance (RSP_ON) of 25.2mW·cm2, which is very close to the theoretical RSP_ON of 23.3mΩ·cm2. DC I-V measurement of packaged JBS diodes showed a forward current of 100A at a voltage drop of 4.3V. A half-bridge inverter with a bus voltage up to 2.5kV was used to characterize the high power switching performance of SiC JBS diodes. A large inductance load of 1mH was used to simulate the load of a high power AC induction motor. Compared to a Si PIN diode module, the SiC JBS package reduces diode turn-off energy loss by 30% and Si IGBT turn-on energy loss by 21% at room temperature.

  Info
Periodical
Materials Science Forum (Volumes 600-603)
Edited by
Akira Suzuki, Hajime Okumura, Tsunenobu Kimoto, Takashi Fuyuki, Kenji Fukuda and Shin-ichi Nishizawa
Pages
947-950
DOI
10.4028/www.scientific.net/MSF.600-603.947
Citation
J. Hu, L. X. Li, P. Alexandrov, X. H. Wang, J. H. Zhao, "5 kV, 9.5 A SiC JBS Diodes with Non-Uniform Guard Ring Edge Termination for High Power Switching Application ", Materials Science Forum, Vols. 600-603, pp. 947-950, 2009
Online since
September 2008
