Paper Title:

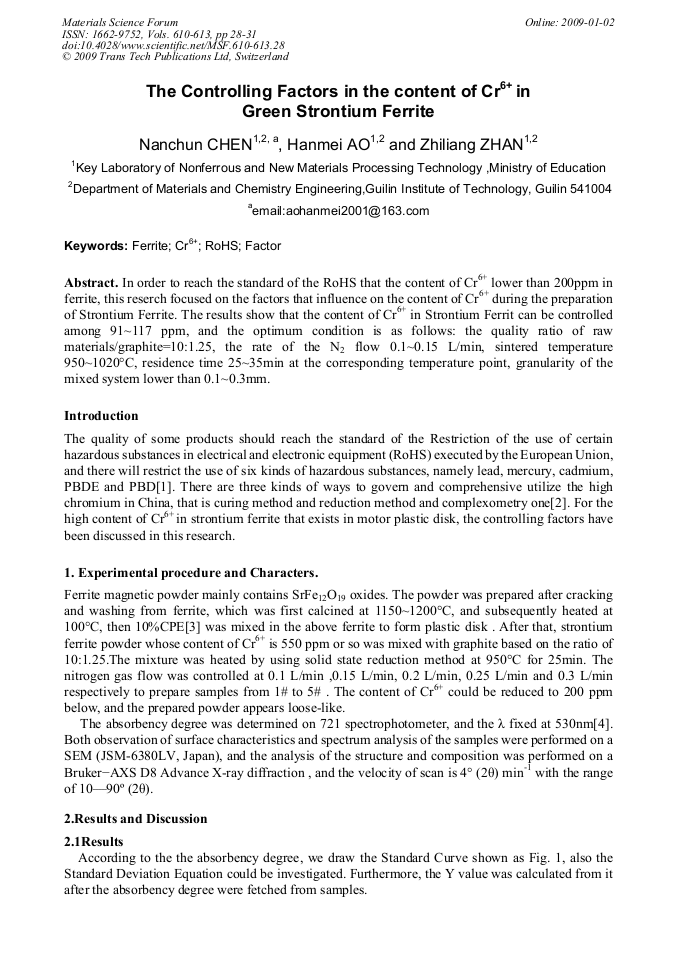

The Controlling Factors in the Content of Cr6+ in Green Strontium Ferrite
  Abstract

In order to reach the standard of the RoHS that the content of Cr6+ lower than 200ppm in ferrite, this reserch focused on the factors that influence on the content of Cr6+ during the preparation of Strontium Ferrite. The results show that the content of Cr6+ in Strontium Ferrit can be controlled among 91~117 ppm, and the optimum condition is as follows: the quality ratio of raw materials/graphite=10:1.25, the rate of the N2 flow 0.1~0.15 L/min, sintered temperature 950~1020°C, residence time 25~35min at the corresponding temperature point, granularity of the mixed system lower than 0.1~0.3mm.

  Info
Periodical
Materials Science Forum (Volumes 610-613)
Main Theme
Edited by
Zhongwei Gu, Yafang Han, Fusheng Pan, Xitao Wang, Duan Weng and Shaoxiong Zhou
Pages
28-31
DOI
10.4028/www.scientific.net/MSF.610-613.28
Citation
N. C. Chen, H. M. Ao, Z. L. Zhan, "The Controlling Factors in the Content of Cr6+ in Green Strontium Ferrite ", Materials Science Forum, Vols. 610-613, pp. 28-31, 2009
Online since
January 2009
