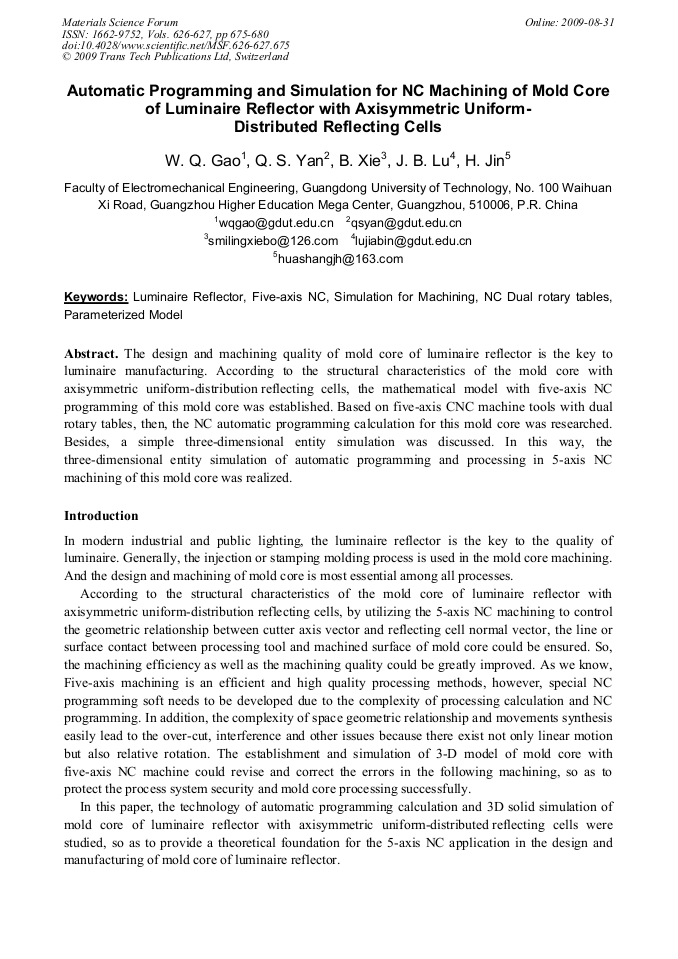

Automatic Programming and Simulation for NC Machining of Mold Core of Luminaire Reflector with Axisymmetric Uniform-Distributed Reflecting Cells
  Abstract

The design and machining quality of mold core of luminaire reflector is the key to luminaire manufacturing. According to the structural characteristics of the mold core with axisymmetric uniform-distribution reflecting cells, the mathematical model with five-axis NC programming of this mold core was established. Based on five-axis CNC machine tools with dual rotary tables, then, the NC automatic programming calculation for this mold core was researched. Besides, a simple three-dimensional entity simulation was discussed. In this way, the three-dimensional entity simulation of automatic programming and processing in 5-axis NC machining of this mold core was realized.
