Paper Title:
Hot Deformation Behavior of Near-α Ti-Fe Alloy in (α+β) Two-Phase Region with Different Fe Content

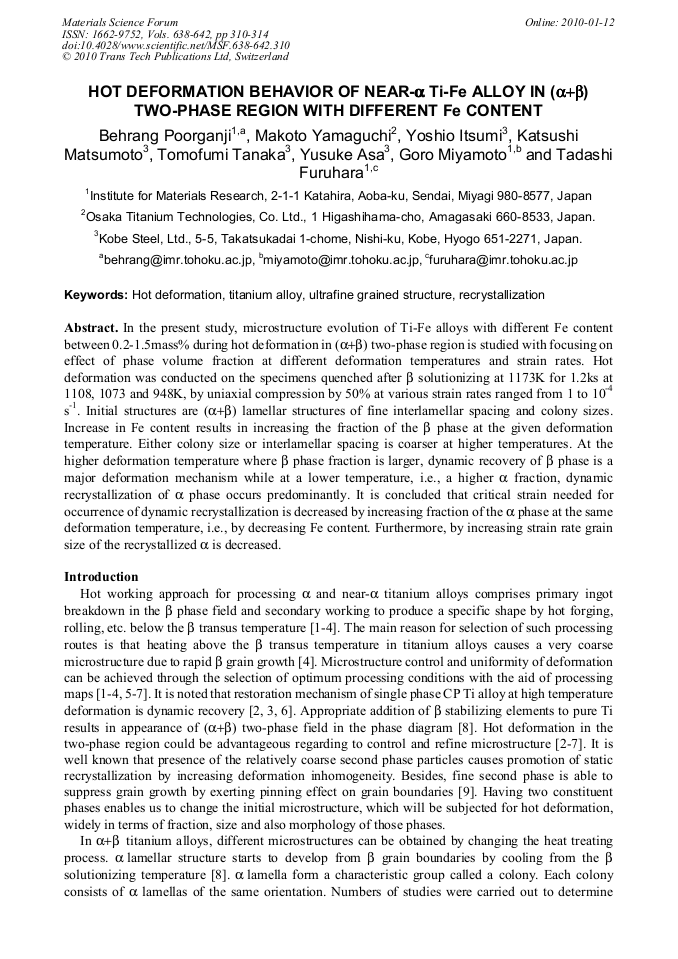

  Abstract

In the present study, microstructure evolution of Ti-Fe alloys with different Fe content between 0.2-1.5mass% during hot deformation in (α+β) two-phase region is studied with focusing on effect of phase volume fraction at different deformation temperatures and strain rates. Hot deformation was conducted on the specimens quenched after β solutionizing at 1173K for 1.2ks at 1108, 1073 and 948K, by uniaxial compression by 50% at various strain rates ranged from 1 to 10-4 s-1. Initial structures are (α+β) lamellar structures of fine interlamellar spacing and colony sizes. Increase in Fe content results in increasing the fraction of the β phase at the given deformation temperature. Either colony size or interlamellar spacing is coarser at higher temperatures. At the higher deformation temperature where β phase fraction is larger, dynamic recovery of β phase is a major deformation mechanism while at a lower temperature, i.e., a higher α fraction, dynamic recrystallization of α phase occurs predominantly. It is concluded that critical strain needed for occurrence of dynamic recrystallization is decreased by increasing fraction of the α phase at the same deformation temperature, i.e., by decreasing Fe content. Furthermore, by increasing strain rate grain size of the recrystallized α is decreased.

  Info
Periodical
Materials Science Forum (Volumes 638-642)
Main Theme
Edited by
T. Chandra, N. Wanderka, W. Reimers , M. Ionescu
Pages
310-314
DOI
10.4028/www.scientific.net/MSF.638-642.310
Citation
B. Poorganji, M. Yamaguchi, Y. Itsumi, K. Matsumoto, T. Tanaka, Y. Asa, G. Miyamoto, T. Furuhara, "Hot Deformation Behavior of Near-α Ti-Fe Alloy in (α+β) Two-Phase Region with Different Fe Content", Materials Science Forum, Vols. 638-642, pp. 310-314, 2010
Online since
January 2010
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Yong Nam Kwon, Young Seon Lee, J.H. Lee
Abstract:Thermomechanical behavior of Al-Mg-Si alloys has been studied to investigate the effect of microstructural features such as pre-existing...
581
Authors: Ha Guk Jeong, Y.G. Jeong, Duk Jae Yoon, Seo Gou Choi, Woo Jin Kim
Abstract:Magnesium alloy AZ31, which processed by conventional rolling or extrusion, has high anisotropy of mechanical properties in its strength and...
235
Authors: Hui Jie Liu, Li Zhou, Yong Xian Huang, Qi Wei Liu
Abstract:As a new solid-state welding process, friction stir welding (FSW) has been successfully used for joining low melting point materials such as...
1185
Authors: Yuichi Nakahira, Tomonari Inamura, Hiroyasu Kanetaka, Shuichi Miyazaki, Hideki Hosoda
Abstract:Effect of nitrogen (N) addition on mechanical properties of Ti-Cr-Sn alloy was investigated in this study. Ti-7mol%Cr-3mol%Sn was selected...
2126
Authors: Gang Wang, Wen Ru Zhao, Yan Dong Liu, Chun Yan Wang, Yan Dong Wang, Liang Zuo
Abstract:In recent years, there has been an increasing interest in magnetic shape memory alloys (MSMAs) due to their unique ability to produce very...
2188
