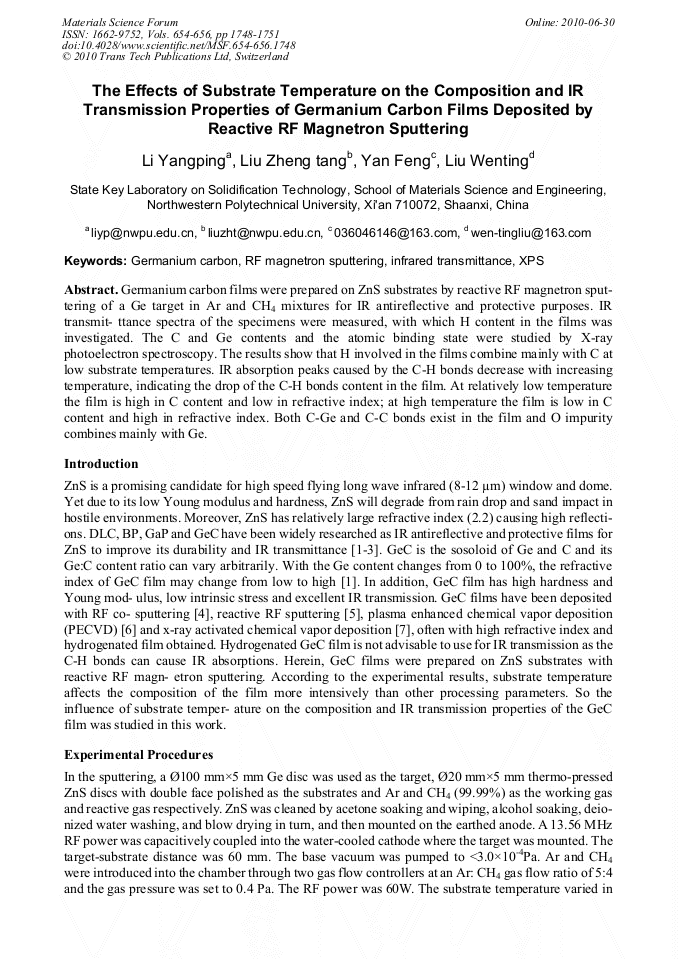

Paper Title:
The Effects of Substrate Temperature on the Composition and IR Transmission Properties of Germanium Carbon Films Deposited by Reactive RF Magnetron Sputtering
  Abstract

Germanium carbon films were prepared on ZnS substrates by reactive RF magnetron sput- tering of a Ge target in Ar and CH4 mixtures for IR antireflective and protective purposes. IR transmit- ttance spectra of the specimens were measured, with which H content in the films was investigated. The C and Ge contents and the atomic binding state were studied by X-ray photoelectron spectroscopy. The results show that H involved in the films combine mainly with C at low substrate temperatures. IR absorption peaks caused by the C-H bonds decrease with increasing temperature, indicating the drop of the C-H bonds content in the film. At relatively low temperature the film is high in C content and low in refractive index; at high temperature the film is low in C content and high in refractive index. Both C-Ge and C-C bonds exist in the film and O impurity combines mainly with Ge.

  Info
Periodical
Materials Science Forum (Volumes 654-656)
Main Theme
Edited by
Jian-Feng Nie and Allan Morton
Pages
1748-1751
DOI
10.4028/www.scientific.net/MSF.654-656.1748
Citation
Y. P. Li, Z. T. Liu, F. Yan, W. T. Liu, "The Effects of Substrate Temperature on the Composition and IR Transmission Properties of Germanium Carbon Films Deposited by Reactive RF Magnetron Sputtering", Materials Science Forum, Vols. 654-656, pp. 1748-1751, 2010
Online since
June 2010
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Xi Yun He, Ai Li Ding, Yong Zhang, Zi Ping Cao, Ping Sun Qiu
Abstract:PLZT (9/65/35) thin films on sapphire (001) substrates with thickness of 0.1 ~ 0.9 µm were prepared by a metal-organic decomposition (MOD)...
231
Authors: S.C. Chen, T.Y. Kuo, Y.C. Lin, Po Cheng Kuo
Abstract:The experimental result shows that the preferred orientations of NiO thin films are closely related to the working pressure of argon. All of...
859
Authors: Ping Luan, Jian Sheng Xie, Jin Hua Li
Chapter 3: Surface, Subsurface, and Interface Phenomena
Abstract:Using magnetron sputtering technology, the CuInSi thin films were prepared by multilayer synthesized method. The structure of CuInSi films...
822
Authors: Xue Hui Wang, Wu Tang, Ji Jun Yang
Chapter 6: Material Design of Computer Aided
Abstract:The porous Cu film was deposited on soft PVDF substrate by magnetron sputtering at different sputtering pressure. The microstructure and...
1451
Authors: Wu Tang, Ji Jun Yang, Chi Ming Li
Chapter 2: Materials Science and Processing
Abstract:In this paper, Al2O3 thin film samples were deposited on Si-(100) substrate by electron beam evaporation with different thickness at...
161
