Paper Title:

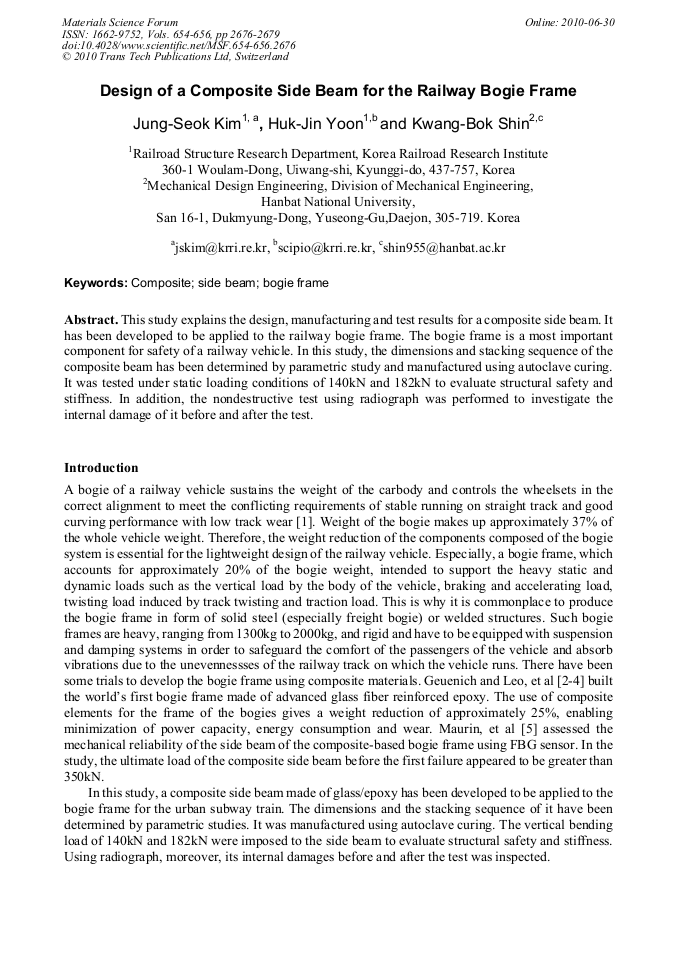

Design of a Composite Side Beam for the Railway Bogie Frame
  Abstract

This study explains the design, manufacturing and test results for a composite side beam. It has been developed to be applied to the railway bogie frame. The bogie frame is a most important component for safety of a railway vehicle. In this study, the dimensions and stacking sequence of the composite beam has been determined by parametric study and manufactured using autoclave curing. It was tested under static loading conditions of 140kN and 182kN to evaluate structural safety and stiffness. In addition, the nondestructive test using radiograph was performed to investigate the internal damage of it before and after the test.

  Info
Periodical
Materials Science Forum (Volumes 654-656)
Main Theme
Edited by
Jian-Feng Nie and Allan Morton
Pages
2676-2679
DOI
10.4028/www.scientific.net/MSF.654-656.2676
Citation
J. S. Kim, H. J. Yoon, K. B. Shin, "Design of a Composite Side Beam for the Railway Bogie Frame", Materials Science Forum, Vols. 654-656, pp. 2676-2679, 2010
Online since
June 2010
Export
Price
$32.00
