Paper Title:

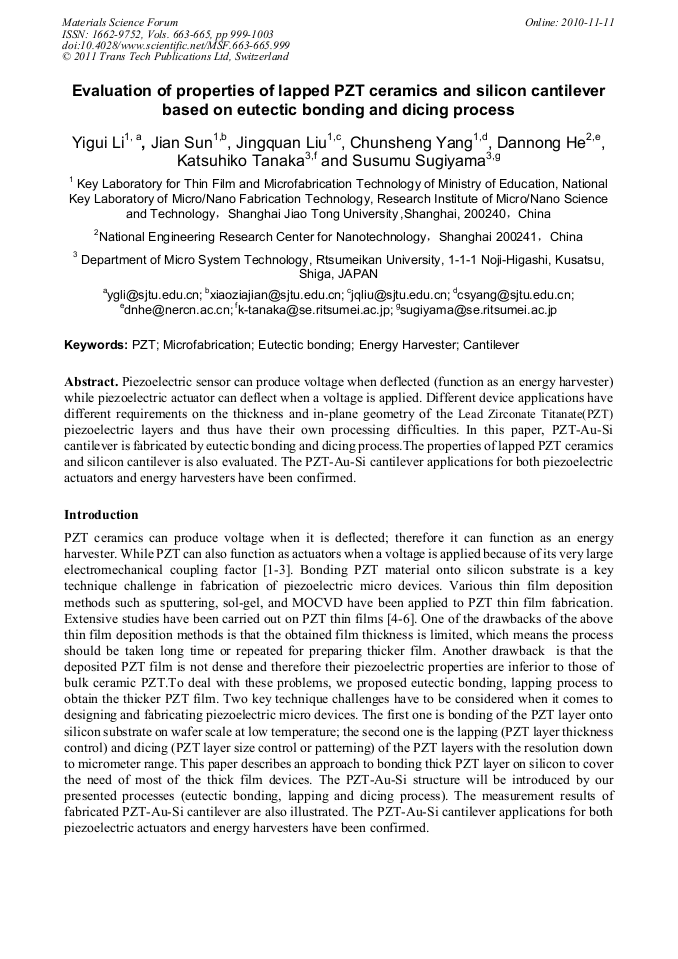

Evaluation of Properties of Lapped PZT Ceramics and Silicon Cantilever Based on Eutectic Bonding and Dicing Process
  Abstract

Piezoelectric sensor can produce voltage when deflected (function as an energy harvester) while piezoelectric actuator can deflect when a voltage is applied. Different device applications have different requirements on the thickness and in-plane geometry of the Lead Zirconate Titanate(PZT) piezoelectric layers and thus have their own processing difficulties. In this paper, PZT-Au-Si cantilever is fabricated by eutectic bonding and dicing process.The properties of lapped PZT ceramics and silicon cantilever is also evaluated. The PZT-Au-Si cantilever applications for both piezoelectric actuators and energy harvesters have been confirmed.

  Info
Periodical
Materials Science Forum (Volumes 663-665)
Edited by
Yuan Ming Huang
Pages
999-1003
DOI
10.4028/www.scientific.net/MSF.663-665.999
Citation
Y. G. Li, J. Sun, J. Q. Liu, C. S. Yang, D. N. He, K. Tanaka, S. Sugiyama, "Evaluation of Properties of Lapped PZT Ceramics and Silicon Cantilever Based on Eutectic Bonding and Dicing Process", Materials Science Forum, Vols. 663-665, pp. 999-1003, 2011
Online since
November 2010
