Paper Title:

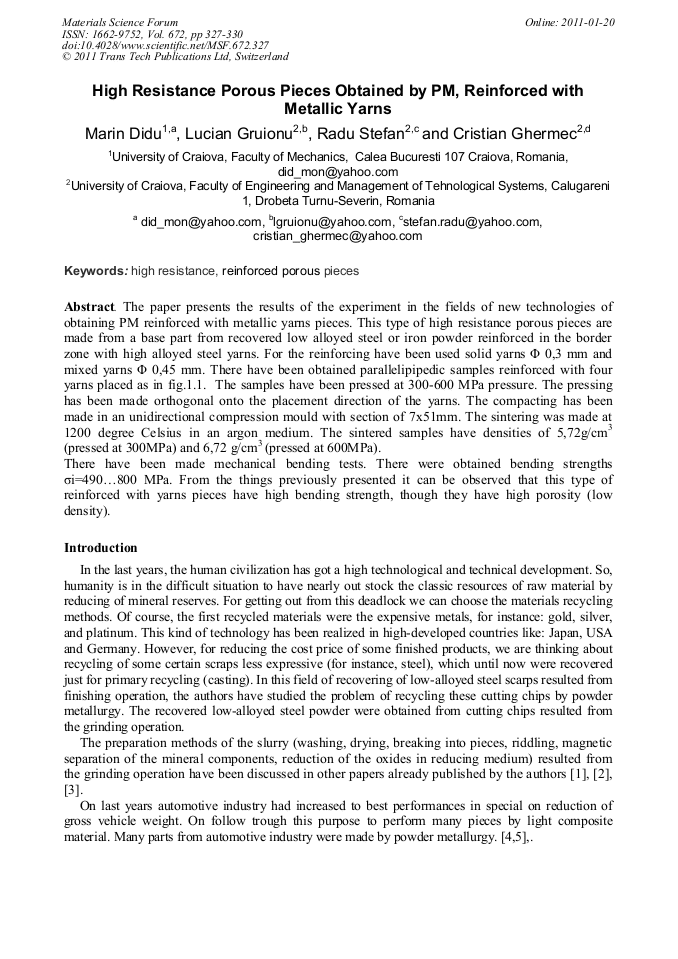

High Resistance Porous Pieces Obtained by PM, Reinforced with Metallic Yarns
  Abstract

The paper presents the results of the experiment in the fields of new technologies of obtaining PM reinforced with metallic yarns pieces. This type of high resistance porous pieces are made from a base part from recovered low alloyed steel or iron powder reinforced in the border zone with high alloyed steel yarns. For the reinforcing have been used solid yarns Φ 0,3 mm and mixed yarns Φ 0,45 mm. There have been obtained parallelipipedic samples reinforced with four yarns placed as in fig.1.1. The samples have been pressed at 300-600 MPa pressure. The pressing has been made orthogonal onto the placement direction of the yarns. The compacting has been made in an unidirectional compression mould with section of 7x51mm. The sintering was made at 1200 degree Celsius in an argon medium. The sintered samples have densities of 5,72g/cm3 (pressed at 300MPa) and 6,72 g/cm3 (pressed at 600MPa). There have been made mechanical bending tests. There were obtained bending strengths σi=490…800 MPa. From the things previously presented it can be observed that this type of reinforced with yarns pieces have high bending strength, though they have high porosity (low density).

  Info
Periodical
Edited by
Ionel Chicinaş and Liviu Brânduşan
Pages
327-330
DOI
10.4028/www.scientific.net/MSF.672.327
Citation
M. Didu, L. Gruionu, S. Radu, C. Ghermec, "High Resistance Porous Pieces Obtained by PM, Reinforced with Metallic Yarns", Materials Science Forum, Vol. 672, pp. 327-330, 2011
Online since
January 2011
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Ola Bergman, Björn Lindqvist, Sven Bengtsson
Abstract:Powder grades pre-alloyed with 1.5-3 wt% chromium are suitable for PM steel components in high performance applications. These materials can...
545
Authors: Shigeru Unami, Yukiko Ozaki, Satoshi Uenosono
Abstract:A new molybdenum hybrid-alloyed steel powder has been developed. The powder is based on a molybdenum prealloyed steel powder to which...
713
Authors: Maurício David Martins das Neves, Nelson Karsokas Filho, Daniel Rodrigues, Lucio Salgado, Francisco Ambrozio Filho
Abstract:In plain iron powder or powder mixtures sintering process, it is very important to control the dimensional change. In the sintering...
747
Authors: Yu Cheng Fang, Xi Yu Luo, Xiang Yang Li
2675
Authors: Liviu Brânduşan
Abstract:The behaviour of alloyed and unalloyed sintered steels in static and dynamic loading is influenced by their macro and microstructure. The...
315
