Finite Element Analysis and Optimization of Structure for Large Blanking Machine Equipment during High-Speed Blanking
  Abstract

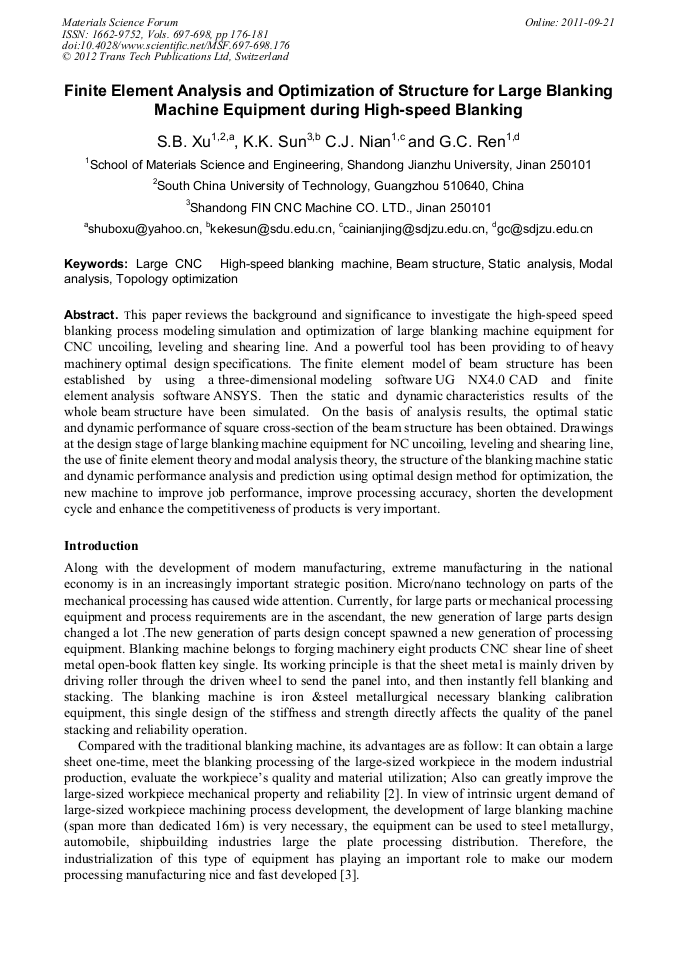

This paper reviews the background and significance to investigate the high-speed speed blanking process modeling simulation and optimization of large blanking machine equipment for CNC uncoiling, leveling and shearing line. And a powerful tool has been providing to of heavy machinery optimal design specifications. The finite element model of beam structure has been established by using a three-dimensional modeling software UG NX4.0 CAD and finite element analysis software ANSYS. Then the static and dynamic characteristics results of the whole beam structure have been simulated. On the basis of analysis results, the optimal static and dynamic performance of square cross-section of the beam structure has been obtained. Drawings at the design stage of large blanking machine equipment for NC uncoiling, leveling and shearing line, the use of finite element theory and modal analysis theory, the structure of the blanking machine static and dynamic performance analysis and prediction using optimal design method for optimization, the new machine to improve job performance, improve processing accuracy, shorten the development cycle and enhance the competitiveness of products is very important.
