Paper Title:

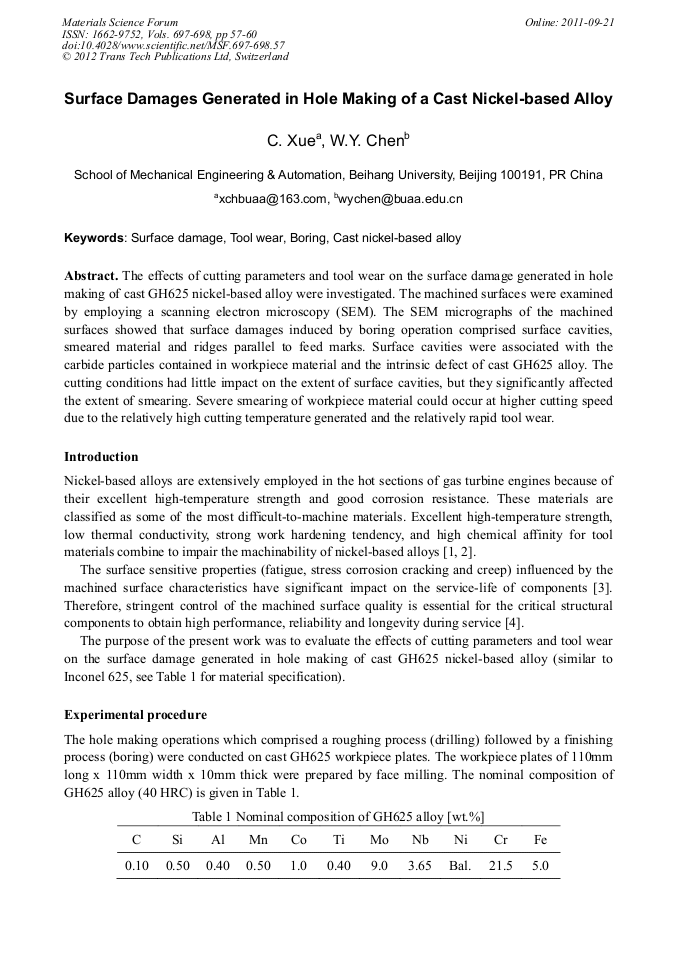

Surface Damages Generated in Hole Making of a Cast Nickel-Based Alloy
  Abstract

The effects of cutting parameters and tool wear on the surface damage generated in hole making of cast GH625 nickel-based alloy were investigated. The machined surfaces were examined by employing a scanning electron microscopy (SEM). The SEM micrographs of the machined surfaces showed that surface damages induced by boring operation comprised surface cavities, smeared material and ridges parallel to feed marks. Surface cavities were associated with the carbide particles contained in workpiece material and the intrinsic defect of cast GH625 alloy. The cutting conditions had little impact on the extent of surface cavities, but they significantly affected the extent of smearing. Severe smearing of workpiece material could occur at higher cutting speed due to the relatively high cutting temperature generated and the relatively rapid tool wear.

  Info
Periodical
Materials Science Forum (Volumes 697-698)
Chapter
I. Advanced Manufacturing Technology and Equipment
Edited by
Tian Huang, Dawei Zhang, Bin Lin, Anping Xu, Yanling Tian and Weiguo Gao
Pages
57-60
DOI
10.4028/www.scientific.net/MSF.697-698.57
Citation
C. Xue, W. Y. Chen, "Surface Damages Generated in Hole Making of a Cast Nickel-Based Alloy", Materials Science Forum, Vols. 697-698, pp. 57-60, 2012
Online since
September 2011
Authors
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Bum Joon Kim, Byeong Soo Lim
Abstract:In this study, the crack growth behavior in P92 steel (9%Cr-2%W) weldment was investigated at 600ı under the load of trapezoidal wave shape...
4211
Authors: Byeong Soo Lim, Bum Joon Kim, D. Kim, J.W. Kim, Dong Bok Lee
Abstract:In this study, the creep-fatigue crack growth behavior was investigated at 600°C under the maximum load with various dwell times. Test...
794
Authors: Huan Yong Li, Wan Qi Jie, Xiao Qin Wang, Ke Wei Xu
Abstract:The microstructure and surface micromorphology of ZnSe single crystals grown directly from zinc and selenium have been investigated using...
633
Authors: Young Gun Ko, Yong Nam Kwon, Jung Hwan Lee, Dong Hyuk Shin, Chong Soo Lee
Abstract:Cavitation behavior during superplastic flow of ultra-fine grained (UFG) Ti-6Al-4V alloy was established with the variation of grain size...
621
Authors: Jie Shao, He Ping Guo, Zhi Qiang Li, X.Q. Han
Abstract:This paper deals with the cavity formation and growth behavior of fine-grained 1420 Al-Li alloy during superplastic forming. The results...
633
