Paper Title:

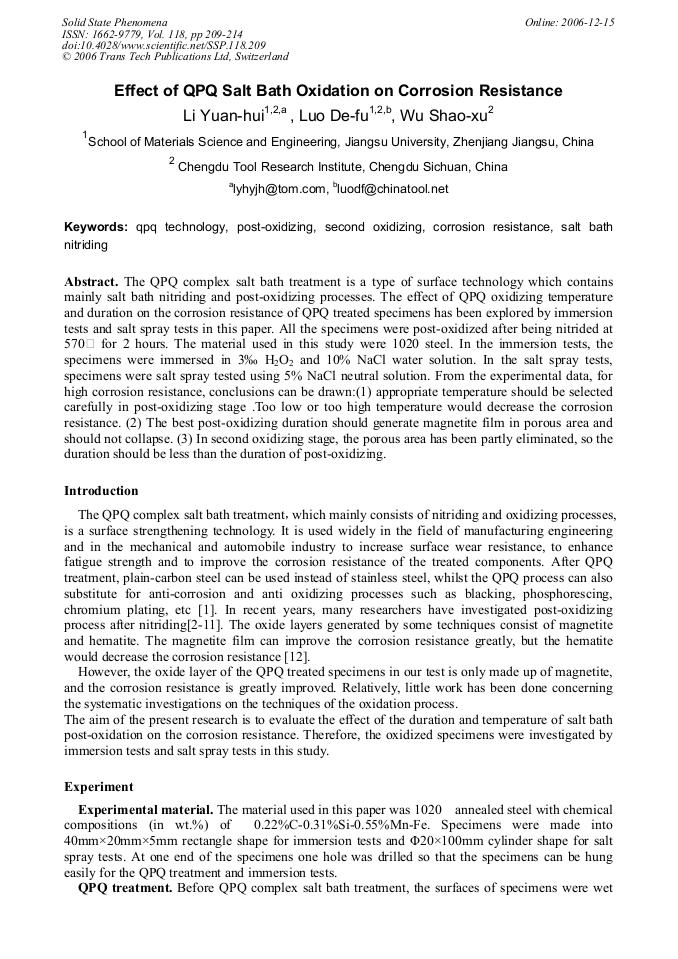

Effect of QPQ Salt Bath Oxidation on Corrosion Resistance
  Abstract

The QPQ complex salt bath treatment is a type of surface technology which contains mainly salt bath nitriding and post-oxidizing processes. The effect of QPQ oxidizing temperature and duration on the corrosion resistance of QPQ treated specimens has been explored by immersion tests and salt spray tests in this paper. All the specimens were post-oxidized after being nitrided at 570! for 2 hours. The material used in this study were 1020 steel. In the immersion tests, the specimens were immersed in 3‰ H2O2 and 10% NaCl water solution. In the salt spray tests, specimens were salt spray tested using 5% NaCl neutral solution. From the experimental data, for high corrosion resistance, conclusions can be drawn:(1) appropriate temperature should be selected carefully in post-oxidizing stage .Too low or too high temperature would decrease the corrosion resistance. (2) The best post-oxidizing duration should generate magnetite film in porous area and should not collapse. (3) In second oxidizing stage, the porous area has been partly eliminated, so the duration should be less than the duration of post-oxidizing.

  Info
Periodical
Solid State Phenomena (Volume 118)
Edited by
Jang Hyun Sung, Chan Gyu Lee, Yong Zoo You, Young Kook Lee and Jae Young Kim
Pages
209-214
DOI
10.4028/www.scientific.net/SSP.118.209
Citation
Y. H. Li, D. F. Luo, S. X. Wu, "Effect of QPQ Salt Bath Oxidation on Corrosion Resistance", Solid State Phenomena, Vol. 118, pp. 209-214, 2006
Online since
December 2006
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Shixue Wen, Jerzy A. Szpunar
Abstract:The influence of current density and temperature on the macrotexture, the orientation and size of grains, and the corrosion resistance of tin...
1413
Authors: Naoya Masahashi, M. Oku, Sadao Watanabe, Shuji Hanada
Abstract:The laminated composite of Fe–Al alloy and CrMo steel was fabricated by clad rolling to provide additional properties to the steel such as...
866
Authors: Antonio Forn, Isabel Espinosa, Maite T. Baile, Elisa Rupérez
Abstract:Semi solid processing reduces porosity and amount of trapped gas and it allows heat treatment T6 that improves a hard anodized oxide layer....
755
Authors: Bing Ying Wang, Zhen Tong Sun
Abstract:Four different metal coatings of pure aluminum, aluminum zinc alloy, titanium, aluminum Titanium were prepared on the surface of X80 pipeline...
533
Authors: Bing Chen, Xiao Li, Yu Guang Fan
Chapter 13: Surface Engineering/Coatings
Abstract:Special SHY-99 anti-corrosion coatings are used for newly developed heat exchange equipment, to resist corrosion and leakage problem of...
1886
