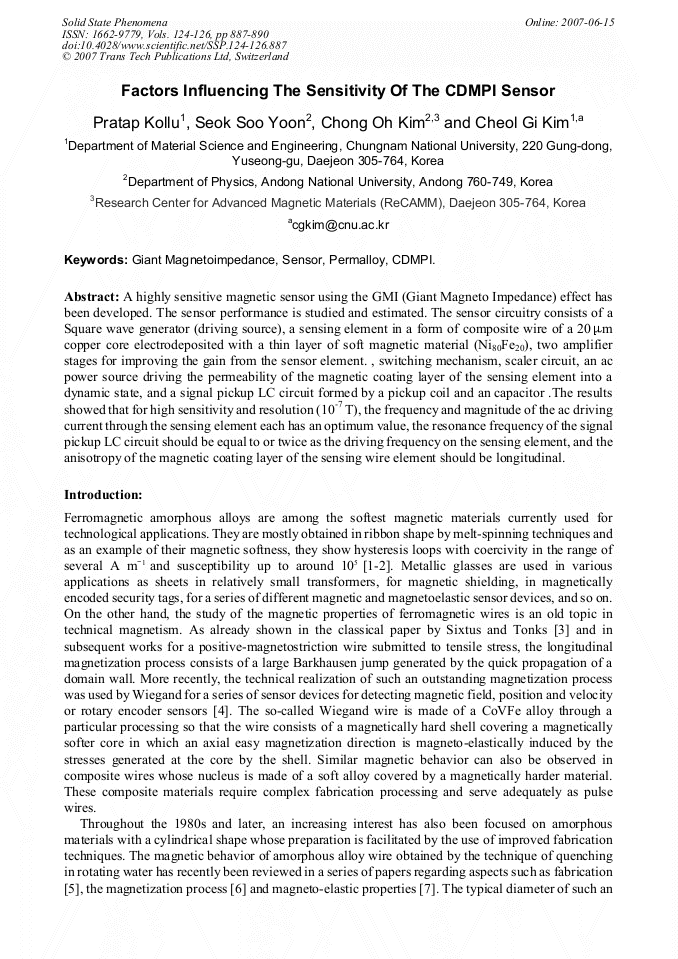

Paper Title:
Factors Influencing the Sensitivity of the CDMPI Sensor
  Abstract

A highly sensitive magnetic sensor using the GMI (Giant Magneto Impedance) effect has been developed. The sensor performance is studied and estimated. The sensor circuitry consists of a Square wave generator (driving source), a sensing element in a form of composite wire of a 20μm copper core electrodeposited with a thin layer of soft magnetic material (Ni80Fe20), two amplifier stages for improving the gain from the sensor element, switching mechanism, scaler circuit, an ac power source driving the permeability of the magnetic coating layer of the sensing element into a dynamic state, and a signal pickup LC circuit formed by a pickup coil and an capacitor .The results showed that for high sensitivity and resolution (10-7 T), the frequency and magnitude of the ac driving current through the sensing element each has an optimum value, the resonance frequency of the signal pickup LC circuit should be equal to or twice as the driving frequency on the sensing element, and the anisotropy of the magnetic coating layer of the sensing wire element should be longitudinal.

  Info
Periodical
Solid State Phenomena (Volumes 124-126)
Edited by
Byung Tae Ahn, Hyeongtag Jeon, Bo Young Hur, Kibae Kim and Jong Wan Park
Pages
887-890
DOI
10.4028/www.scientific.net/SSP.124-126.887
Citation
P. Kollu, S. S. Yoon, C. O. Kim, C. G. Kim, "Factors Influencing the Sensitivity of the CDMPI Sensor", Solid State Phenomena, Vols. 124-126, pp. 887-890, 2007
Online since
June 2007
