Paper Title:
Blue Laser Diodes by Low Temperature Plasma Assisted MBE
  Abstract

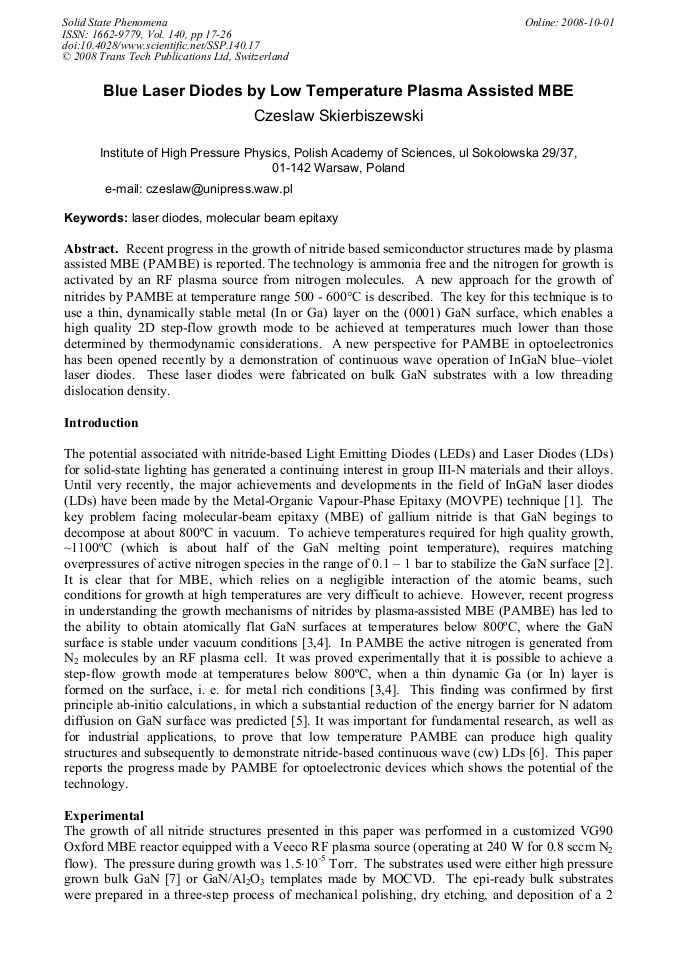

Recent progress in the growth of nitride based semiconductor structures made by plasma assisted MBE (PAMBE) is reported. The technology is ammonia free and the nitrogen for growth is activated by an RF plasma source from nitrogen molecules. A new approach for the growth of nitrides by PAMBE at temperature range 500 - 600°C is described. The key for this technique is to use a thin, dynamically stable metal (In or Ga) layer on the (0001) GaN surface, which enables a high quality 2D step-flow growth mode to be achieved at temperatures much lower than those determined by thermodynamic considerations. A new perspective for PAMBE in optoelectronics has been opened recently by a demonstration of continuous wave operation of InGaN blue–violet laser diodes. These laser diodes were fabricated on bulk GaN substrates with a low threading dislocation density.

  Info
Periodical
Solid State Phenomena (Volume 140)
Edited by
Witold Łojkowski and John R. Blizzard
Pages
17-26
DOI
10.4028/www.scientific.net/SSP.140.17
Citation
C. Skierbiszewski, "Blue Laser Diodes by Low Temperature Plasma Assisted MBE", Solid State Phenomena, Vol. 140, pp. 17-26, 2008
Online since
October 2008
