On Non-Ideal Simple Portal Frame Structural Model: Experimental Results under a Non-Ideal Excitation

Abstract:

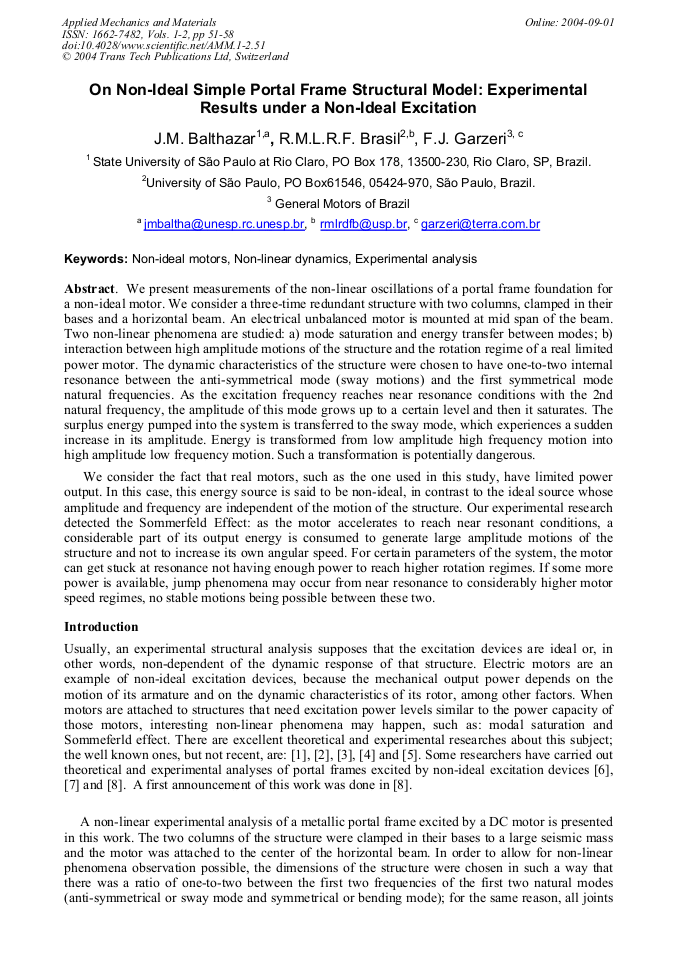

Article Preview

We present measurements of the non-linear oscillations of a portal frame foundation for a non-ideal motor. We consider a three-time redundant structure with two columns, clamped in their bases and a horizontal beam. An electrical unbalanced motor is mounted at mid span of the beam. Two non-linear phenomena are studied: a) mode saturation and energy transfer between modes; b)interaction between high amplitude motions of the structure and the rotation regime of a real limited power motor. The dynamic characteristics of the structure were chosen to have one-to-two internal resonance between the anti-symmetrical mode (sway motions) and the first symmetrical mode natural frequencies. As the excitation frequency reaches near resonance conditions with the 2nd natural frequency, the amplitude of this mode grows up to a certain level and then it saturates. The surplus energy pumped into the system is transferred to the sway mode, which experiences a sudden increase in its amplitude. Energy is transformed from low amplitude high frequency motion into high amplitude low frequency motion. Such a transformation is potentially dangerous. We consider the fact that real motors, such as the one used in this study, have limited power output. In this case, this energy source is said to be non-ideal, in contrast to the ideal source whose amplitude and frequency are independent of the motion of the structure. Our experimental research detected the Sommerfeld Effect: as the motor accelerates to reach near resonant conditions, a considerable part of its output energy is consumed to generate large amplitude motions of the structure and not to increase its own angular speed. For certain parameters of the system, the motor can get stuck at resonance not having enough power to reach higher rotation regimes. If some more power is available, jump phenomena may occur from near resonance to considerably higher motor speed regimes, no stable motions being possible between these two.

Info:

Periodical:

Edited by:

M. Lucas

Pages:

51-58

Citation:

J. M. Balthazar et al., "On Non-Ideal Simple Portal Frame Structural Model: Experimental Results under a Non-Ideal Excitation", Applied Mechanics and Materials, Vols. 1-2, pp. 51-58, 2004

Online since:

September 2004

Export:

Price:

$38.00

[1] A . Sommerfeld. Beitrage zum dynamischen ausbau de festigkeitslehre". Physikalische Zeitschr, Vol. 4, (1904), pp.631-636.

[2] V. O. Kononenko: Vibrating Systems with a Limited Power Supply London (Illife Books 1969).

[3] JM Balthazar, DT Mook, DT, RMLRF Brasil, HI Weber, A. Fenili, D. Belato, JLP Felix: An Overview on non-ideal vibrations, Meccanica, 38, (2003), pp.613-621.

DOI: https://doi.org/10.1023/a:1025877308510

[4] Balachandran B., A Theoretical nd Experimental Study of Modal Interacions in Resonantly Forced Structures, (1990), Phd Dissertation, Vrginia Tech, Blacksburg, Virginia, USA.

[5] Mattos MC, J M Balthazar, DT Mook, S. Wieczorek. Experimental Study of Vibrations of Non-ideal Systems. (1997), (Proceedings of DETEC'97. CD ROM ASME Design Engineering Technical Conferences, Sacramento, CA, 1997), 10 pages.

[6] Garzeri, F.J.: On The Dynamical and Experimental Analyzis of a Non-Ideal Portal Frame Structure( In Portuguese), Phd Dissertation, SP, Brazil.

[7] Felix JLF: On Dynamics and Control of a Non-Ideal Portal Frame Strcuture (In Portuguese), (2002), Phd Dissertation, Campinas, SP, Brazil.

[8] MRF Brasil, J M Balthazar, F J Garzeri, Experimental Validation of a Non-Linear Model Under Non-Ideal Excitation, (2003), (Proceedings of DETEC'03. CD ROM ASME Design Engineering Technical Conferences, Chicago, Illinois, USA, 2003), 10 pages.

DOI: https://doi.org/10.1115/detc2003/vib-48627
