Texture Analysis in Composites Formed from Waste Materials

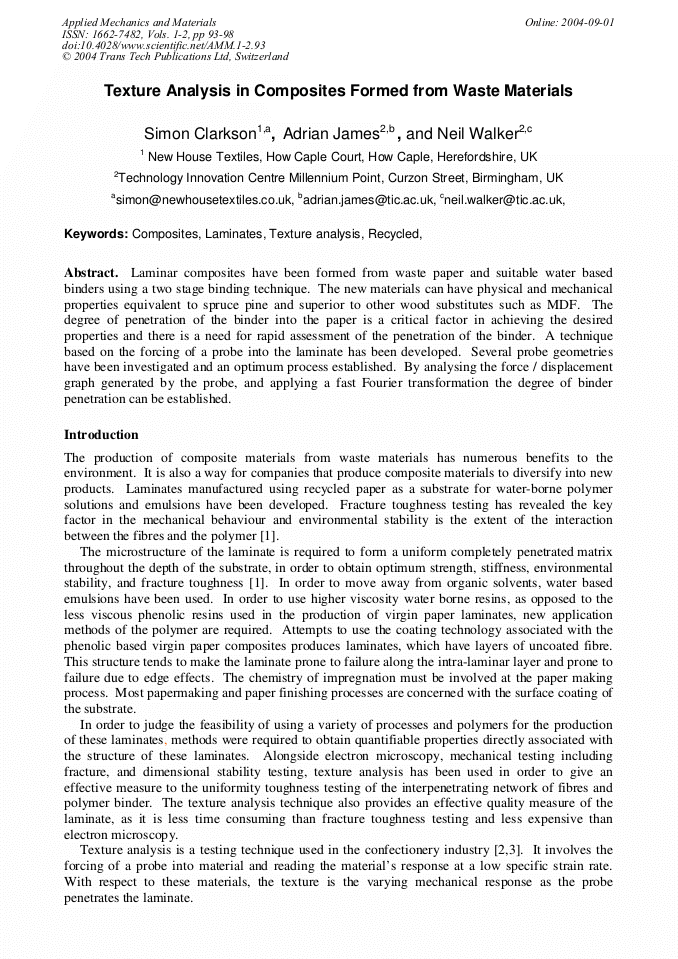

Article Preview

Laminar composites have been formed from waste paper and suitable water based binders using a two stage binding technique. The new materials can have physical and mechanical properties equivalent to spruce pine and superior to other wood substitutes such as MDF. The degree of penetration of the binder into the paper is a critical factor in achieving the desired properties and there is a need for rapid assessment of the penetration of the binder. A technique based on the forcing of a probe into the laminate has been developed. Several probe geometries have been investigated and an optimum process established. By analysing the force / displacement graph generated by the probe, and applying a fast Fourier transformation the degree of binder penetration can be established.



Edited by:

M. Lucas




S. Clarkson et al., "Texture Analysis in Composites Formed from Waste Materials", Applied Mechanics and Materials, Vols. 1-2, pp. 93-98, 2004

Online since:

September 2004




[1] Kimber, P.B., Clarkson, S.P., White, B.R., James, A.S., Hayes, D.A., Atkinson, G., Fracture Behaviour of Structural Laminates Manufactured from Waste Cellulose, Congress Proceedings R'99 Volume 3 193-198, (1999).

[2] Bourne, M., Food Texture & Viscosity - Concepts and Measurement, (2nd edition) (ISBN: 0121190625).

[3] Fiszman, S.M. and Damasio, M.H., Instrumental measurement of adhesiveness in solid and semi-solid foods, A survey: Journal of Texture Studies, 31, 69-91, (2000).

DOI: https://doi.org/10.1111/j.1745-4603.2000.tb00285.x

[4] Foulger, M., Parisian, J., Didwania, H.P., Taylor, J., New technology to apply starch and other additives, Pulp and Paper Canada 100: 2 (1999): 24-25.

[5] Stanzl-Tschegg S.E., Tan, D.M., Tschegg, E.K., Mode II Fracture Tests on Spruce Wood, Mokuzai Gakkaishi Vol 42. No 7 pg 642-650 (1996).
