Visualisation Technique for Trabecular Architecture of Bone Using Ultrasound Signals

Abstract:

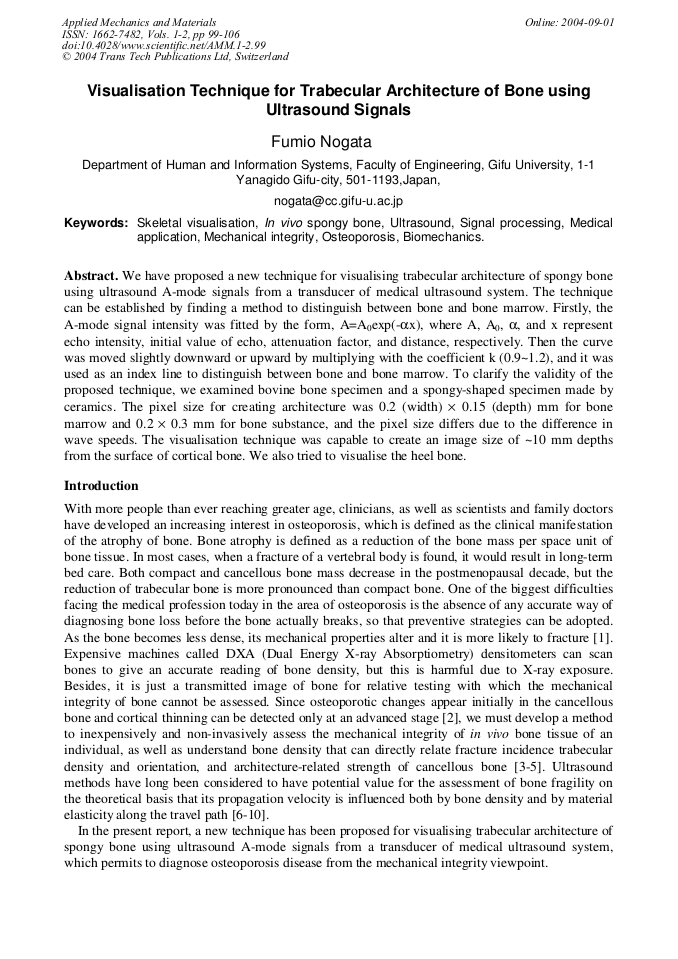

Article Preview

We have proposed a new technique for visualising trabecular architecture of spongy bone using ultrasound A-mode signals from a transducer of medical ultrasound system. The technique can be established by finding a method to distinguish between bone and bone marrow. Firstly, the A-mode signal intensity was fitted by the form, A=A0exp(-ax), where A, A0, a, and x represent echo intensity, initial value of echo, attenuation factor, and distance, respectively. Then the curve was moved slightly downward or upward by multiplying with the coefficient k (0.9~1.2), and it was used as an index line to distinguish between bone and bone marrow. To clarify the validity of the proposed technique, we examined bovine bone specimen and a spongy-shaped specimen made by ceramics. The pixel size for creating architecture was 0.2 (width) × 0.15 (depth) mm for bone marrow and 0.2 × 0.3 mm for bone substance, and the pixel size differs due to the difference in wave speeds. The visualisation technique was capable to create an image size of ~10 mm depths from the surface of cortical bone. We also tried to visualise the heel bone.

Info:

Periodical:

Edited by:

M. Lucas

Pages:

99-106

Citation:

F. Nogata, "Visualisation Technique for Trabecular Architecture of Bone Using Ultrasound Signals ", Applied Mechanics and Materials, Vols. 1-2, pp. 99-106, 2004

Online since:

September 2004

Authors:

Export:

Price:

$38.00

[1] D.R. Carter and W.C. Hayes: The compressive behavior of bone as a two-phase porous structure", J. Bone and Joint Surgery, 59-A7, (1977), pp.954-962.

DOI: https://doi.org/10.2106/00004623-197759070-00021

[2] B.E.C. Nordin., M. Peacock, R.G. Crelly, P.J. Heyburn, A. Jorrsman, and W. Remagen, 1988, Osteoporosis, Basle, (1990), pp.3-42.

[3] S. Lee, J.M. Ahern and M. Leonard: Parameters influencing the sonic velocity in compact calcified tissues of various species, J. Acoust. Soc. Am., 74 (1983), pp.28-33.

[4] L.J. Gibson: The mechanical behaviour of cancellous bone, J. Biomech., 18-5 (1985) pp.317-328.

[5] J.C. Rice, S.C. Cowin and J.A. Bowman: On the dependence of the elasticity and strength of cancellous bone on apparent density, J. Biomechanics, 21-2 (1988), pp.155-168.

DOI: https://doi.org/10.1016/0021-9290(88)90008-5

[6] R. Hodgskinson and J.D. Currey: Effects of Structural Variation of Young's Modulus of Non-human Cancellous Bone, Proc. Ins. Mech. Engrs., 206 (1990) pp.43-52.

[7] C.M. Langton: The measurement of broadband ultrasonic attenuation in cancellous bone, Eng. in Medicine, 13-2 (1984), pp.89-91.

[8] R.K. Lippmann: The use of auscultatory percussion for the examination of fractures, J. Bone Joint Surgery, 14, (1932), pp.118-126.

[9] V.R. Singh, S. Yadav and V.P. Adya: Role of natural frequency of bone as a guide for detection of bone fracture healing, J. Biomed. Eng., 11 (1989), pp.457-461.

DOI: https://doi.org/10.1016/0141-5425(89)90039-3

[10] F. Nogata et. al.: Method and apparatus for evaluating the progress of osteoporosis by ultrasonic signals, United States Patent No. 5535750(1996).
