A Cluster-Based Wavelet Feature Extraction Method for Machine Fault Diagnosis

Abstract:

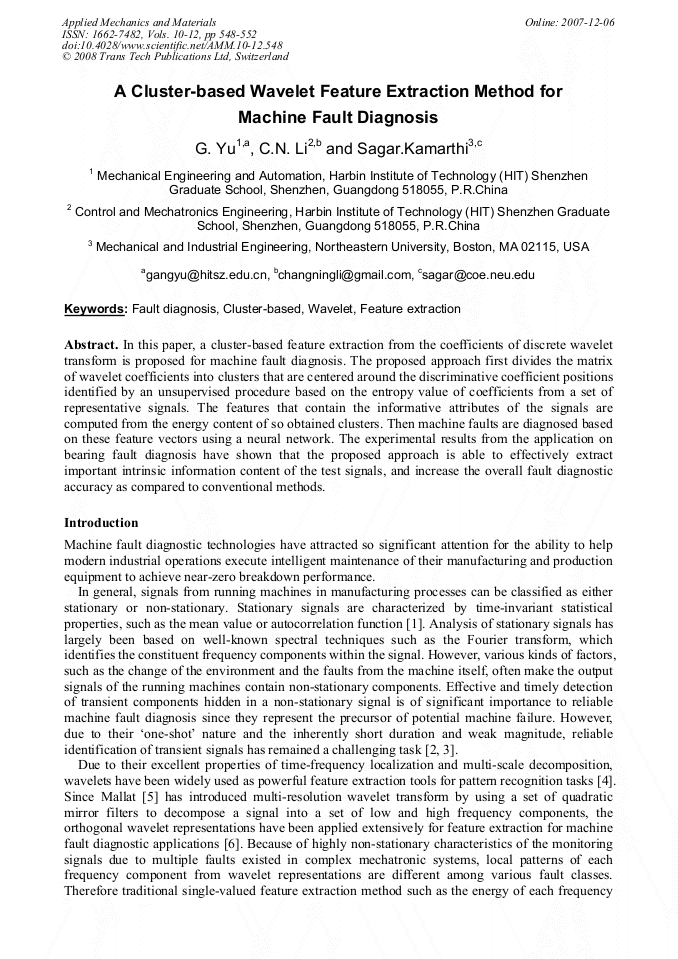

Article Preview

In this paper, a cluster-based feature extraction from the coefficients of discrete wavelet transform is proposed for machine fault diagnosis. The proposed approach first divides the matrix of wavelet coefficients into clusters that are centered around the discriminative coefficient positions identified by an unsupervised procedure based on the entropy value of coefficients from a set of representative signals. The features that contain the informative attributes of the signals are computed from the energy content of so obtained clusters. Then machine faults are diagnosed based on these feature vectors using a neural network. The experimental results from the application on bearing fault diagnosis have shown that the proposed approach is able to effectively extract important intrinsic information content of the test signals, and increase the overall fault diagnostic accuracy as compared to conventional methods.

Info:

Periodical:

Edited by:

Kai Cheng, Yingxue Yao and Liang Zhou

Pages:

548-552

Citation:

G. Yu et al., "A Cluster-Based Wavelet Feature Extraction Method for Machine Fault Diagnosis", Applied Mechanics and Materials, Vols. 10-12, pp. 548-552, 2008

Online since:

December 2007

Export:

Price:

$38.00

[1] S.B. Julius and G.P. Allan: 2 nd edn. John Wiley & Sons, New York, (1986).

[2] S. Gu, J. Ni and J. Yuan: Int. J. of Machine Tools & Manufacture, Vol. 42 (2002), pp.41-51.

[3] L.R. Padovese: Mechanical Systems and Signal Processing, Vol. 18 (2004), pp.1047-1064.

[4] I. Daubechies: Ten lectures on Wavelets(SIAM Press, Philadelphia, PA 1992).

[5] S.G. Mallat: IEEE Transactions, Vol. 37 (1989), pp.2091-2110.

[6] Z.K. Peng , F.L. Chu: Mechanical Systems and Signal Processing, Vol. 18 (2004), pp.199-221.

[7] S. Pittner, S.V. Kamarthi: IEEE Transactions on Pattern Analysis and Machine Intelligence, Vol. 21 (1999), pp.83-88.

[8] S. Mallat: IEEE Transactions on Pattern Analysis and Machine Intelligence, Vol. 2 (1989), pp.674-693.

[9] S. Mallat: A Wavelet Tour of Signal Processing (Academic Press, San Diego, CA, 1999).

[10] C.E. Shannon, W. Weaver: The Mathematical Theory of Communication (University of Illinois Press, 1963).

[11] P.K. Sen, J.M. Singer: Large Sample Methods in Statistics-An Introduction with Applications (Chapman & Hall, New York 1993).

[12] CWRU Bearing Test Data Center: http: /www. eecs. case. edu/laboratory/bearing.

[13] A.C. McCormick, A.K. Nandi: IEEE Trans. Neural Networks, Vol. 8 (1997), pp.748-757.

[14] D.F. Specht: Neural Networks, Vol. 3 (1990), pp.109-118.
