Research on Chip-Breaking Model and Prediction of 3-D Complicated Groove Insert

Abstract:

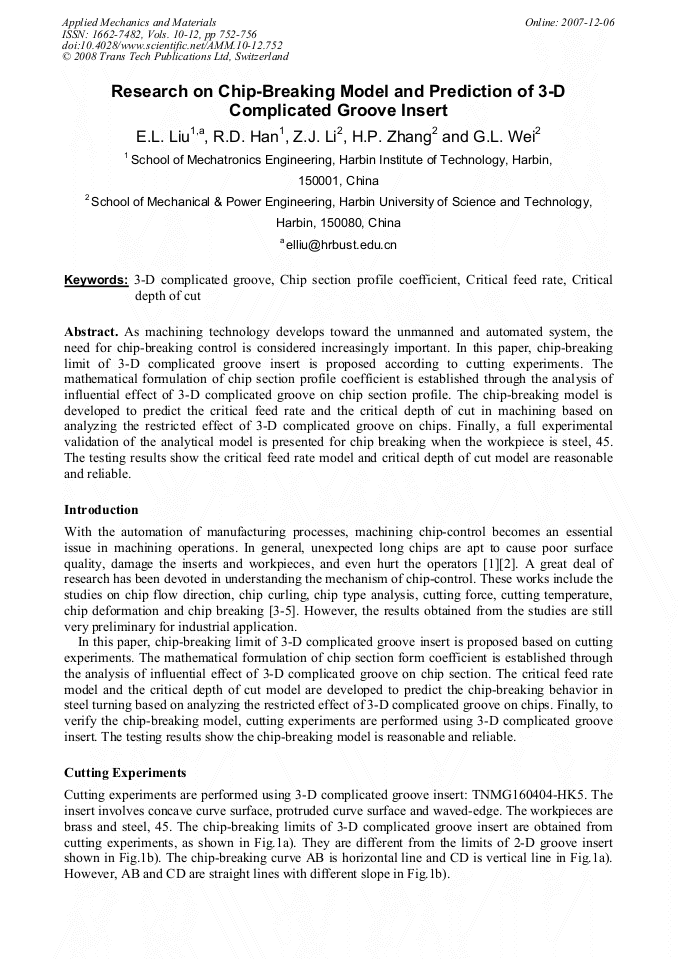

Article Preview

As machining technology develops toward the unmanned and automated system, the need for chip-breaking control is considered increasingly important. In this paper, chip-breaking limit of 3-D complicated groove insert is proposed according to cutting experiments. The mathematical formulation of chip section profile coefficient is established through the analysis of influential effect of 3-D complicated groove on chip section profile. The chip-breaking model is developed to predict the critical feed rate and the critical depth of cut in machining based on analyzing the restricted effect of 3-D complicated groove on chips. Finally, a full experimental validation of the analytical model is presented for chip breaking when the workpiece is steel, 45. The testing results show the critical feed rate model and critical depth of cut model are reasonable and reliable.

Info:

Periodical:

Edited by:

Kai Cheng, Yingxue Yao and Liang Zhou

Pages:

752-756

DOI:

10.4028/www.scientific.net/AMM.10-12.752

Citation:

E.L. Liu et al., "Research on Chip-Breaking Model and Prediction of 3-D Complicated Groove Insert", Applied Mechanics and Materials, Vols. 10-12, pp. 752-756, 2008

Online since:

December 2007

Export:

Price:

$38.00

[1] Z. Li: Machining Chip breaking Process Analysis (Mechanical Industry Press, Beijing, China, 1996).

[2] K. Nakayama: Bulletin of Japanese Society of Precision Engineering, Vol. 18 (1984) No. 2, pp.97-103.

[3] C.Y. Jiang, Y. Z. Zhang and Z. J. Chi: Annals of the CIRP, Vol. 33 (1984), pp.81-84.

[4] C. Spaans: The fundamentals of three-dimensional chip curl, chip breaking and chip control (PhD Paper, TH Delft, 1971).

[5] L. Zhou: Machining Chip-Breaking Prediction with Grooved Inserts in Steel Turning (Ph.D. Research Dissertation, Worcester Polytechnic Institute, MA, 2001). f (mm/r) Critical depth of cut Critical feed rate ap(mm) Chip-breaking region a) Chip map b) Chip-breaking curves obtained from simulation Fig. 6 Comparison of chip breaking regions obtained from the experiment and the simulation TNMG160404-HK5.

DOI: 10.1007/978-1-84800-205-0_2
