Numerical Analysis of KI of Semi-Elliptical Surface Crack in Steel Structure Strengthened with FRP under Tensile Load

Abstract:

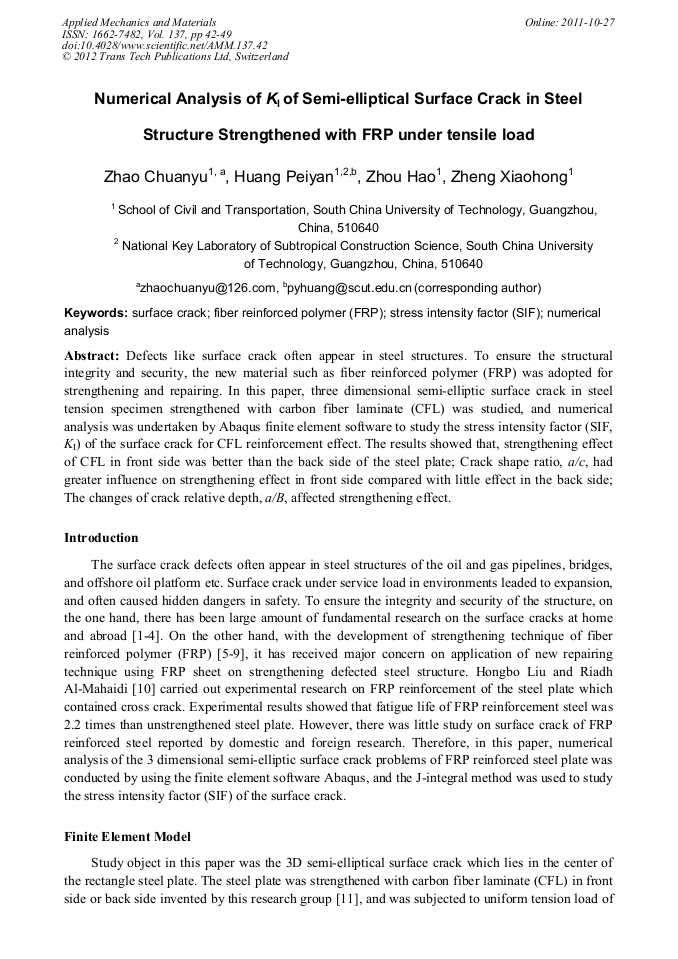

Article Preview

Defects like surface crack often appear in steel structures. To ensure the structural integrity and security, the new material such as fiber reinforced polymer (FRP) was adopted for strengthening and repairing. In this paper, three dimensional semi-elliptic surface crack in steel tension specimen strengthened with carbon fiber laminate (CFL) was studied, and numerical analysis was undertaken by Abaqus finite element software to study the stress intensity factor (SIF, KI) of the surface crack for CFL reinforcement effect. The results showed that, strengthening effect of CFL in front side was better than the back side of the steel plate; Crack shape ratio, a/c, had greater influence on strengthening effect in front side compared with little effect in the back side; The changes of crack relative depth, a/B, affected strengthening effect.

Info:

Periodical:

Edited by:

Robert Zhu

Pages:

42-49

DOI:

10.4028/www.scientific.net/AMM.137.42

Citation:

C. Y. Zhao et al., "Numerical Analysis of KI of Semi-Elliptical Surface Crack in Steel Structure Strengthened with FRP under Tensile Load", Applied Mechanics and Materials, Vol. 137, pp. 42-49, 2012

Online since:

October 2011

Export:

Price:

$35.00

[1] M.H. Sharobeam, J.D. Landes. Numerical solutions for ductile fracture behavior of semielliptical surface crack. Engineering Fracture Mechanics. 63(1999) 131-145.

DOI: 10.1016/s0013-7944(99)00017-x

[2] ZHOU Fengluan, Gao Yifei. Stress intensity factor of semi-elliptical surface cracks by finite element analysis. Physics Examination and Testing. 27(2009) 54-56.

[3] Hadi Khoramishad, Majid Reza Ayatollahi. Finite element analysis of a semi-elliptical external crack in a buried pipe. Transactions of the Canadian Society for Mechanical Engineering, 33(2009) 399-409.

[4] A.R. Shahani, M.M. Shodja, A. Shahhosseini. Experimental investigation and finite element analysis of fatigue crack growth in pipes containing a circumferential semi-elliptical crack subjected to bending. Experimental Mechanics, 50(2010). 563-573.

DOI: 10.1007/s11340-009-9229-6

[5] PY. Huang, XP. Zhou, C. Zhao. Some Key Mechanical Problems on FRP Sheet Applied in Civil Engineering. Journal of South China University of Technology. 30(2002)101-105.

[6] Gwo-Chung Tsai, Shyan Bob Shen. Fatigue analysis of cracked thick aluminum plate bonded with composite patches. Composite Structures. 64(2004)79-90.

DOI: 10.1016/s0263-8223(03)00216-2

[7] Xiao-Ling Zhao, Lei Zhang. State-of-the-art review on FRP strengthened steel structures. Engineering Structures. 29(2007) 1808-1823.

DOI: 10.1016/j.engstruct.2006.10.006

[8] Kent A. Harries, Andrew J. peck, Elizabeth J. Abraham. Enhancing stability of structural steel sections using FRP. Thin-Walled Structures. 47(2009) 1092-1101.

DOI: 10.1016/j.tws.2008.10.007

[9] Tavakkolizadeh M, Saadatmanesh H. Fatigue strength of steel girders strengthened with CFRP patch. Journal of Structural Engineering. 129(2003) 186-196.

DOI: 10.1061/(asce)0733-9445(2003)129:2(186)

[10] Hongbo Liu, Riadh Al-Mahaidi. Experimental study of fatigue crack growth behavior in adhesively reinforced steel structures. Composite Structures. 90(2009)12-20.

DOI: 10.1016/j.compstruct.2009.02.016

[11] Peiyan Huang, Jingcheng Zeng. Application of Carbon Fiber Laminate. Chinese Patent No. ZL200410026742. 8. (2006).
