Spacecraft Attitude and System Identification Using Marginal Reduced UKF Utilizing the Sun and Calibrated TAM Sensors

Abstract:

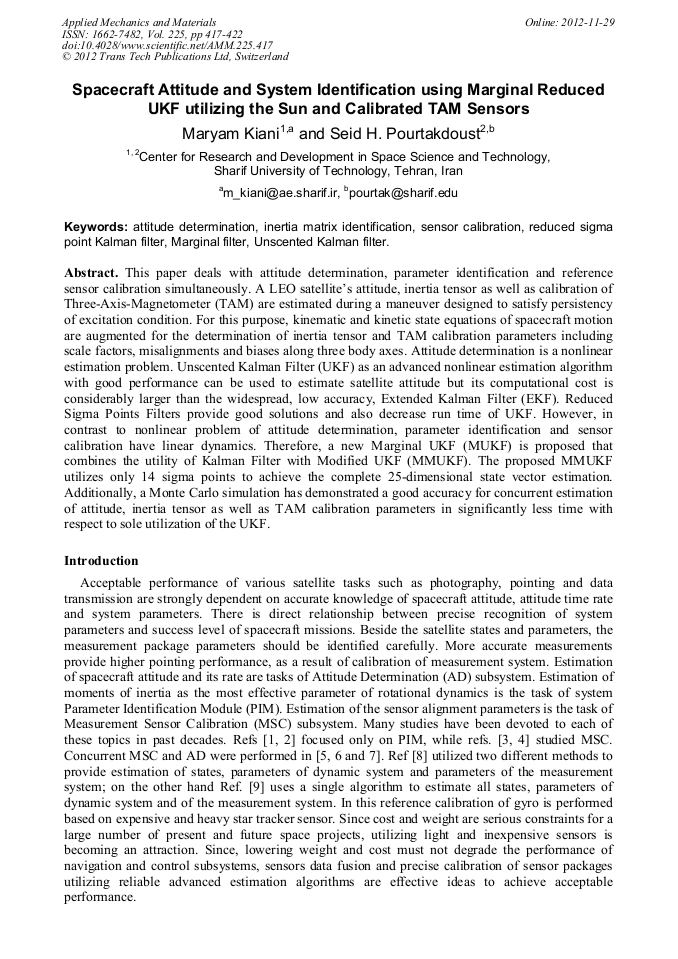

Article Preview

This paper deals with attitude determination, parameter identification and reference sensor calibration simultaneously. A LEO satellite’s attitude, inertia tensor as well as calibration of Three-Axis-Magnetometer (TAM) are estimated during a maneuver designed to satisfy persistency of excitation condition. For this purpose, kinematic and kinetic state equations of spacecraft motion are augmented for the determination of inertia tensor and TAM calibration parameters including scale factors, misalignments and biases along three body axes. Attitude determination is a nonlinear estimation problem. Unscented Kalman Filter (UKF) as an advanced nonlinear estimation algorithm with good performance can be used to estimate satellite attitude but its computational cost is considerably larger than the widespread, low accuracy, Extended Kalman Filter (EKF). Reduced Sigma Points Filters provide good solutions and also decrease run time of UKF. However, in contrast to nonlinear problem of attitude determination, parameter identification and sensor calibration have linear dynamics. Therefore, a new Marginal UKF (MUKF) is proposed that combines the utility of Kalman Filter with Modified UKF (MMUKF). The proposed MMUKF utilizes only 14 sigma points to achieve the complete 25-dimensional state vector estimation. Additionally, a Monte Carlo simulation has demonstrated a good accuracy for concurrent estimation of attitude, inertia tensor as well as TAM calibration parameters in significantly less time with respect to sole utilization of the UKF.

Info:

Periodical:

Main Theme:

Edited by:

R. Varatharajoo, E. J. Abdullah, D. L. Majid, F. I. Romli, A. S. Mohd Rafie and K. A. Ahmad

Pages:

417-422

Citation:

M. Kiani and S. H. Pourtakdoust, "Spacecraft Attitude and System Identification Using Marginal Reduced UKF Utilizing the Sun and Calibrated TAM Sensors", Applied Mechanics and Materials, Vol. 225, pp. 417-422, 2012

Online since:

November 2012

Export:

Price:

$38.00

[1] J. A. Wertz and A. Y. Lee, In-Flight Estimation of the Cassini Spacecraft's Inertia Tensor, Journal of spacecraft and Rockets, Vol. 39, No. 1, (2000) 153-155.

DOI: https://doi.org/10.2514/2.3795

[2] B-E Jun, D. S. Bernstein and N. H. McClamroch, Identification of the Inertia Matrix of a Rotating Body Based on Errors-in-Variables Models, International Journal of Adaptive Control and Signal Processing, (2009).

DOI: https://doi.org/10.1002/acs.1112

[3] Y. V. Kim, K.J. Di Filippo, A. Ng, On the Calibration of Satellite On-Board Magnetometer, The Fourth International Conference on Control and Automation (ICCA'03), (2003).

DOI: https://doi.org/10.1109/icca.2003.1595162

[4] J. L. Crassidiss, K-L Lai, R. R. Harman, Real-Time Attitude-Independent Three-Axis Magnetometer Calibration, AIAA Journal of Guidance, Control and dynamics, Vol. 28, No. 1, (2005) 115-120.

DOI: https://doi.org/10.2514/1.6278

[5] M. E. Pittelkau, Kalman Filtering for Spacecraft System Alignment Calibration, Journal of Guidance, Control and Dynamics, Vol. 24, No. 6, (2001) 1187-1195.

DOI: https://doi.org/10.2514/3.22615

[6] K-L. Lai, J. L. Crassidiss, R. R. Harman, In-Space Spacecraft Alignment Calibration Using the Unscented Filter, AIAA Guidance, Navigation and Control Conference, Austin, (2003).

DOI: https://doi.org/10.2514/6.2003-5563

[7] E. Kim and H-C Bang, Bias Estimation of Magnetometer Using Genetic Algorithm, International Conference on Control, Automation and Systems, ( 2007).

DOI: https://doi.org/10.1109/iccas.2007.4406907

[8] A. Kutlu, Ch. Hacryev, O. Tekinalp, Attitude Determination and Rotational Motion Parameters Identification of a LEO Satellite Through Magnetometer and Sun Sensor Data, International Conference on Recent Advances in Space Technologies , (2007).

DOI: https://doi.org/10.1109/rast.2007.4284033

[9] H. Myung, K-L Yong and H. Bang, Hybrid Estimation of Spacecraft Attitude Dynamics and Rate Sensor Alignment Parameters, International Conference on Control, Automation and Systems, (2007).

DOI: https://doi.org/10.1109/iccas.2007.4406904

[10] M. J. Sidi, Spacecraft Dynamics and Control, Cambridge University Press, (1997).

[11] D. Shuster M., A Survey of Attitude Representations, The Journal of the Astronautical Sciences, V. 41, No. 3 (1993).

[12] P. H. Zipfel, Modeling and Simulation of Aerospace Vehicle Dynamics, AIAA Education Series, (2000).

[13] S. J. Julier, J. K. Uhlmann, A New Extension of the Kalman Filter to Nonlinear Systems, in Proc. Of AeroSense: The 11th Int. Symposium On Aerospace/Defense Sensing, Simulation and Controls, (1997).

[14] Li w. -Ch., Wei P., Xiao X-C., Novel Simplex Unscented Transform and Filter, Journal of Electronic and Technology of China, Vol. 6, N. 1, (2008).

[15] C. C Finlay., S. Maus, C. D. Began, and et al, International Geomagnetic Reference field: the eleven generation, Geophys. J. Int., V. 183, (2010).
