Evaluation of Rugged 'Smart Patch' Fibre-Optic Strain Sensors

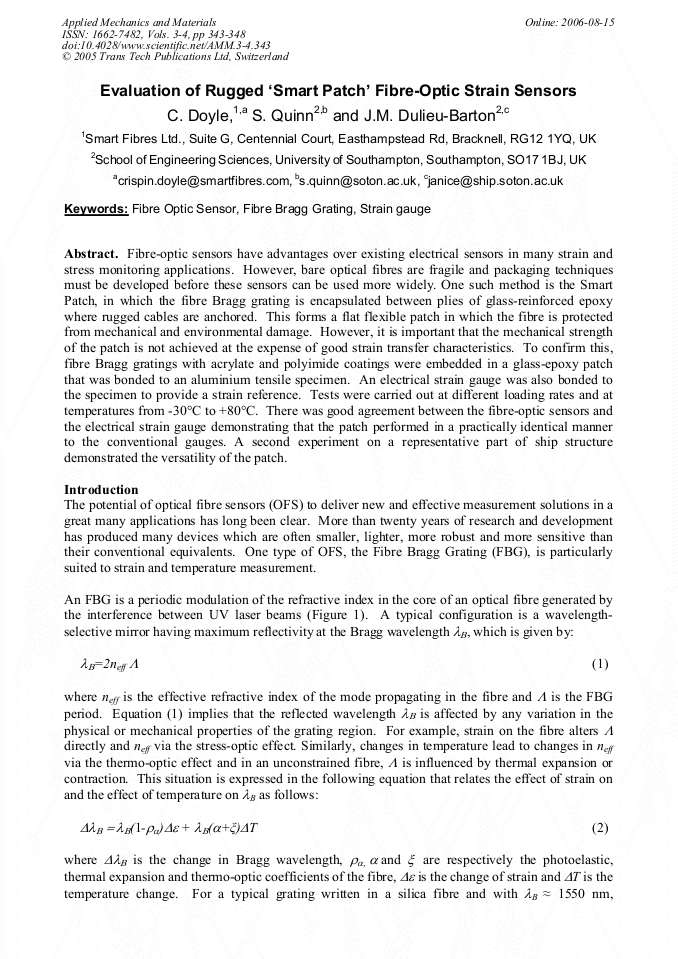

Article Preview

Fibre-optic sensors have advantages over existing electrical sensors in many strain and stress monitoring applications. However, bare optical fibres are fragile and packaging techniques must be developed before these sensors can be used more widely. One such method is the Smart Patch, in which the fibre Bragg grating is encapsulated between plies of glass-reinforced epoxy where rugged cables are anchored. This forms a flat flexible patch in which the fibre is protected from mechanical and environmental damage. However, it is important that the mechanical strength of the patch is not achieved at the expense of good strain transfer characteristics. To confirm this, fibre Bragg gratings with acrylate and polyimide coatings were embedded in a glass-epoxy patch that was bonded to an aluminium tensile specimen. An electrical strain gauge was also bonded to the specimen to provide a strain reference. Tests were carried out at different loading rates and at temperatures from -30°C to +80°C. There was good agreement between the fibre-optic sensors and the electrical strain gauge demonstrating that the patch performed in a practically identical manner to the conventional gauges. A second experiment on a representative part of ship structure demonstrated the versatility of the patch.



Edited by:

J.M. Dulieu-Barton and S. Quinn






C. Doyle et al., "Evaluation of Rugged 'Smart Patch' Fibre-Optic Strain Sensors", Applied Mechanics and Materials, Vols. 3-4, pp. 343-348, 2005

Online since:

August 2006
