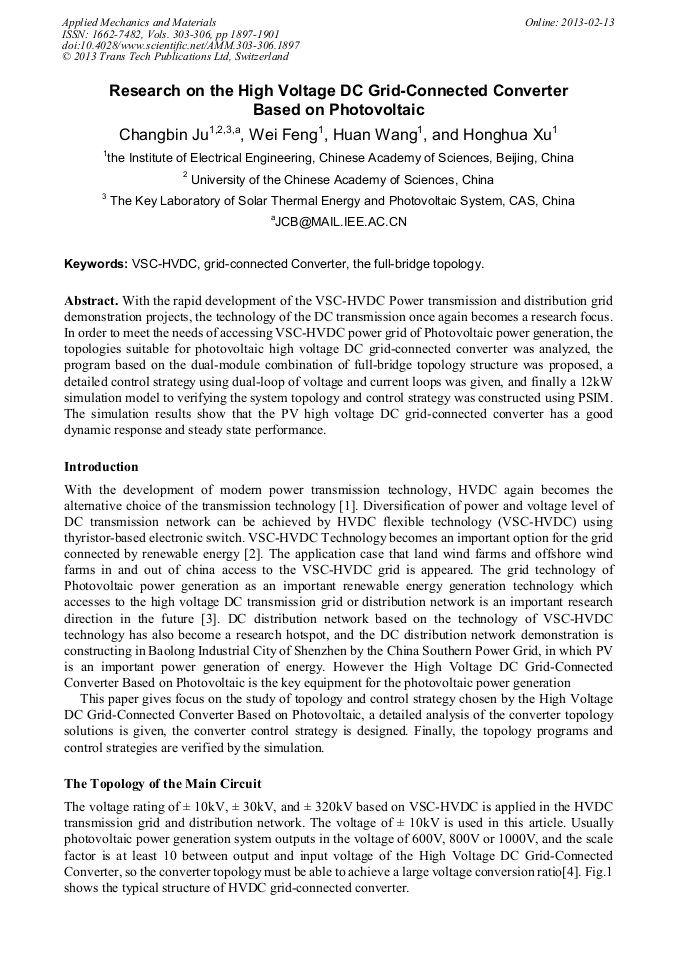

Research on the High Voltage DC Grid-Connected Converter Based on Photovoltaic

Abstract:

With the rapid development of the VSC-HVDC Power transmission and distribution grid demonstration projects, the technology of the DC transmission once again becomes a research focus. In order to meet the needs of accessing VSC-HVDC power grid of Photovoltaic power generation, the topologies suitable for photovoltaic high voltage DC grid-connected converter was analyzed, the program based on the dual-module combination of full-bridge topology structure was proposed, a detailed control strategy using dual-loop of voltage and current loops was given, and finally a 12kW simulation model to verifying the system topology and control strategy was constructed using PSIM. The simulation results show that the PV high voltage DC grid-connected converter has a good dynamic response and steady state performance.

• Periodical: Applied Mechanics and Materials (Volumes 303-306)
• Pages: 1897-1901
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.303-306.1897
• Online since: February 2013
• Authors: Chang Bin Ju, Wei Feng, Huan Wang, Hong Hua Xu
• Keywords: Full-Bridge Topology, Grid-Connected Converter, VSC-HVDC

References

[1] D. Van Hertem and M. Ghandhari, Multi-terminal VSC HVDC for the European supergrid: Obstacles, Renewable and Sustainable Energy Reviews, vol. 14, no. 9, p.3156 –3163, (2010).

DOI: 10.1016/j.rser.2010.07.068

[2] JÜRGEN HÄFNER, BJÖRN JACOBSON Proactive Hybrid HVDC Breakers - A key innovation for reliable HVDC grids, CIGRE symposium, Bologna, September (2011).

[3] International Energy Agency, Solar Photovoltaic Energy Technology Roadmaps, 2010, pp.6-10. Available: http: /www. iea. org.

DOI: 10.1787/9789264088047-en

[4] Soeren Baekhoej Kjaer, John K. Pedersen and Frede Blaabjerg, A Review of Single-Phase Grid-Connected Inverters for Photovoltaic Modules, , IEEE Trans. Industry Applications, Vol. 4I, No. 5 September/October (2005).

DOI: 10.1109/tia.2005.853371

[5] Wei Dou, Research on Control Strategy of Grid-Connected PV Inverter, PhD. dissertation, lEE CAS, Beijing, China2008.

[6] Ned Mohan, Tore M. Undeland and William P. Robbins, Power Electronics Converters, Applications and Design, (2nd ed. ) New York Wiley & Sons, 1995 p.745.

[7] D Jovcic and B. T Ooi, Theoretical aspects of fault isolation on DC transmission lines using resonant DC/DC converters, IET Generation Transmission and Distribution, Vol. 5, Issue 2, 2011, pp.153-160.

DOI: 10.1049/iet-gtd.2010.0274

[8] Y. Panov, J. Rajagopalan, F. C. Lee, Analysis and Design of N Paralleled DC/DC Converters with Master-Slave Current Sharing Control, " IEEE APEC , 97 Proceedings, February 1007, pp.436-442.

DOI: 10.1109/apec.1997.581489

[9] Yuri Panov and Milan M. Jovanovic, Loop Gain Measurement of Paralleled DCIDC Converters with Average-Current-Sharing Control, , IEEE Transactions on Power Electronics, Vo123, No 6, Nov. (2008).

DOI: 10.1109/tpel.2008.2002955
