Nonlinear Models of Cable-Stayed Bridges

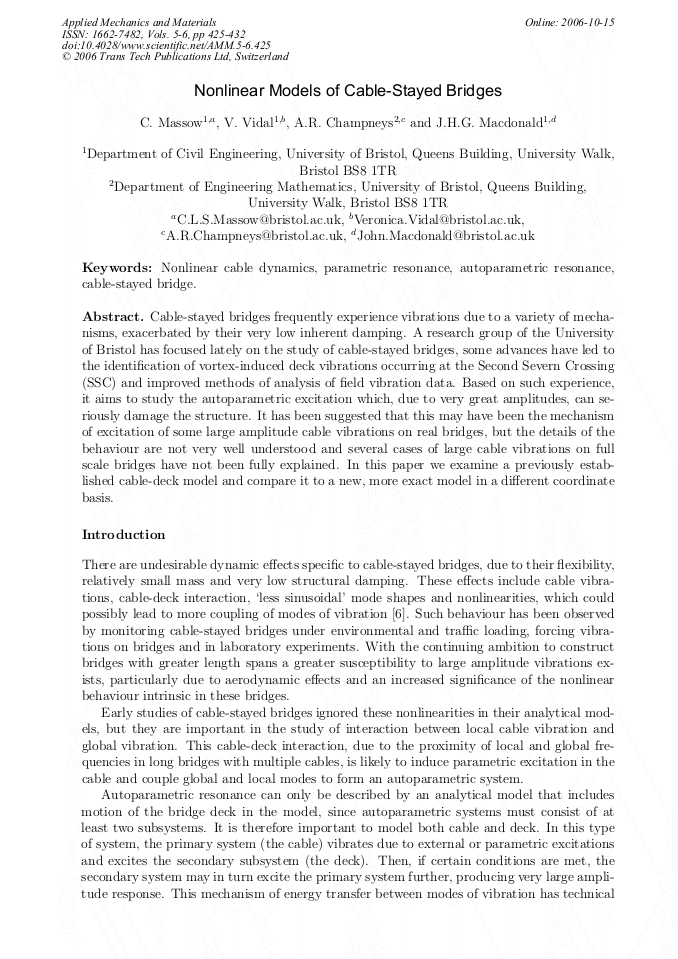

Article Preview

Cable-stayed bridges frequently experience vibrations due to a variety of mechanisms, exacerbated by their very low inherent damping. A research group of the University of Bristol has focused lately on the study of cable-stayed bridges, some advances have led to the identification of vortex-induced deck vibrations occurring at the Second Severn Crossing (SSC) and improved methods of analysis of field vibration data. Based on such experience, it aims to study the autoparametric excitation which, due to very great amplitudes, can seriously damage the structure. It has been suggested that this may have been the mechanism of excitation of some large amplitude cable vibrations on real bridges, but the details of the behaviour are not very well understood and several cases of large cable vibrations on full scale bridges have not been fully explained. In this paper we examine a previously established cable-deck model and compare it to a new, more exact model in a different coordinate basis.



Edited by:

Patrick Sean Keogh




C. Massow et al., "Nonlinear Models of Cable-Stayed Bridges", Applied Mechanics and Materials, Vols. 5-6, pp. 425-432, 2006

Online since:

October 2006




[1] J. Pizarro Armendariz. Non-linear dynamics in cable-stayed bridges. Undergraduate Masters Thesis, Department of Applied Mathematics, University of Seville, (2004).

[2] Y. Fujino, P. Warnitchai, and B. M. Pacheco. An experimental and analytical study of autoparametric resonance in a 3dof model of cable-stayed beam. Nonlinear Dynamics, 4: 111138, (1993).

[3] V. Gattulli and M. Lepidi. Nonlinear interactions in the planar dynamics of cable-stayed beam. Journal of Solids and Structures, 40(18): 47294748, (2003).


[4] H. M. Irvine. Cable Structures. MIT Press, Cambridge, Massachusetts, (1981).

[5] R. Lorenzo. Modelling of cable-structure interaction in cable-stayed bridges and examination of their parametric response under stochastic loading. PhD thesis, Department of Civil Engineering, University of Bristol, (2003).

[6] J. H. G. Macdonald. Identification of the dynamic behaviour of a cable-stayed bridge from full-scale testing during and after construction. PhD thesis, Department of Civil Engineering, University of Bristol, (2000).

[7] N. C. Perkins. Modal interactions in the non-linear response of elastic cables under parametric/external excitation. International Journal of Non-linear Mechanics, 27(2): 233250, (1990).


[8] J. Valverde, J. L. Escalona, J. Domnguez, and A. R. Champneys. Stability and bifurcation analysis of a spinning space tether. To appear in Journal of Nonlinear Science.

[9] P. Warnitchai, Y. Fujino, and T. Susumpow. Nonlinear interactions in the planar dynamics of cable-stayed beam. Journal of Sound and Vibration, 187(4): 695712, (1995).
