Vibration of a Beam Excited by a Moving Flexible Body

Abstract:

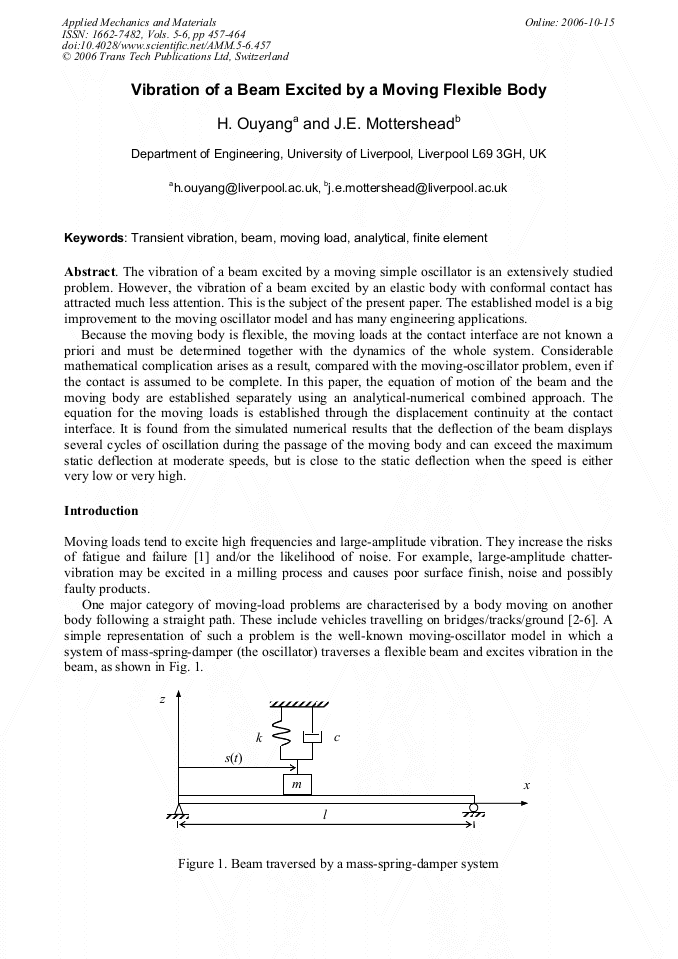

Article Preview

The vibration of a beam excited by a moving simple oscillator is an extensively studied problem. However, the vibration of a beam excited by an elastic body with conformal contact has attracted much less attention. This is the subject of the present paper. The established model is a big improvement to the moving oscillator model and has many engineering applications. Because the moving body is flexible, the moving loads at the contact interface are not known a priori and must be determined together with the dynamics of the whole system. Considerable mathematical complication arises as a result, compared with the moving-oscillator problem, even if the contact is assumed to be complete. In this paper, the equation of motion of the beam and the moving body are established separately using an analytical-numerical combined approach. The equation for the moving loads is established through the displacement continuity at the contact interface. It is found from the simulated numerical results that the deflection of the beam displays several cycles of oscillation during the passage of the moving body and can exceed the maximum static deflection at moderate speeds, but is close to the static deflection when the speed is either very low or very high.

Info:

Periodical:

Edited by:

Patrick Sean Keogh

Pages:

457-464

Citation:

H. J. Ouyang and J. E. Mottershead, "Vibration of a Beam Excited by a Moving Flexible Body", Applied Mechanics and Materials, Vols. 5-6, pp. 457-464, 2006

Online since:

October 2006

Export:

Price:

$38.00

[1] K.D. Van and M.H. Maitournam: On some recent trends in modelling of contact fatigue and wear in rail. Wear, Vol. 253 (2002) No. 1-2, pp.219-227.

DOI: https://doi.org/10.1016/s0043-1648(02)00104-7

[2] M. Olsson: On the fundamental moving load problem. Journal of Sound and Vibration, Vol. 145 (1991) No. 2, pp.299-307.

DOI: https://doi.org/10.1016/0022-460x(91)90593-9

[3] H. Kruse and K. Popp: A modular algorithm for linear, periodic train-track models. Archive of Applied Mechanics, Vol. 71 (2001) No. 6-7, pp.473-486.

DOI: https://doi.org/10.1007/s004190000151

[4] J.J. Wu, A.R. Whittaker and M.P. Cartmell : Dynamic responses of structures to moving bodies using combined finite element and analytical methods. International Journal of Mechanical Sciences Vol. 43(2001) No. 11, pp.2555-2579.

DOI: https://doi.org/10.1016/s0020-7403(01)00054-6

[5] B. Yang, C.A. Tan and L.A. Bergman: Direct numerical procedure for the solution of moving oscillator problems. ASCE Journal of Engineering Mechanics, Vol. 126 (2000) No. 5, p.462469.

[6] A.V. Pesterev, L.A. Bergman and C.A. Tan: A novel approach to the calculation of potholeinduced contact forces in MDOF vehicle models. Journal of Sound and Vibration, Vol. 275 (2004) No. 1-2, pp.127-149.

DOI: https://doi.org/10.1016/s0022-460x(03)00789-2

[7] R.A. Stein and M.W. Tobriner: Vibration of pipes containing flowing fluids. ASME Journal of Applied Mechanics, Vol. 37 (1970), pp.906-916.

DOI: https://doi.org/10.1115/1.3408717

[8] H. Ouyang, J.E. Mottershead, D.J. Brookfield, S. James and M.P. Cartmell: A methodology for the determination of dynamic instabilities in a car disc brake. International Journal of Vehicle Design, Vol. 23 (2000) No. 3/4, pp.241-262.

DOI: https://doi.org/10.1504/ijvd.2000.001894

[9] H. Ouyang, J.E. Mottershead and W. Li: A moving-load model for disc-brake stability analysis. ASME Journal of Vibration and Acoustics, Vol. 125 (2003) No. 1, pp.53-58.

DOI: https://doi.org/10.1115/1.1521954

[10] Q. Cao, H. Ouyang, M.I. Friswell and J.E. Mottershead: Linear eigenvalue analysis of the discbrake squeal problem. International Journal for Numerical Methods in Engineering, Vol. 61 (2004) No. 9, pp.1546-1563.

DOI: https://doi.org/10.1002/nme.1127

[11] U. Lee: Revisiting the moving mass problem: onset of separation between the mass and the beam. ASME Journal of Vibration and Acoustics, Vol. 118 (1996), pp.516-521.

DOI: https://doi.org/10.1115/1.2888215

[12] A.V. Pesterev and L.A. Bergman: A contribution to the moving mass problem. ASME Journal of Vibration and Acoustics, Vol. 120 (1998), pp.824-826.

DOI: https://doi.org/10.1115/1.2893904

[13] L. Fryba: Vibration of Solids and Structures under Moving Loads (3 rd edition) (Thomas Telford, London 1999).

[14] H. Ouyang and J.E. Mottershead: Vibration of a beam traversed by a moving flexible body. in: Proceedings of NOVEM2005 (in USB), St. Raphael, France, 18-21 April (2005).
