Study of Wake Profiles of a Simplified Model of High Speed Train Using RANS and LES Turbulent Models

Abstract:

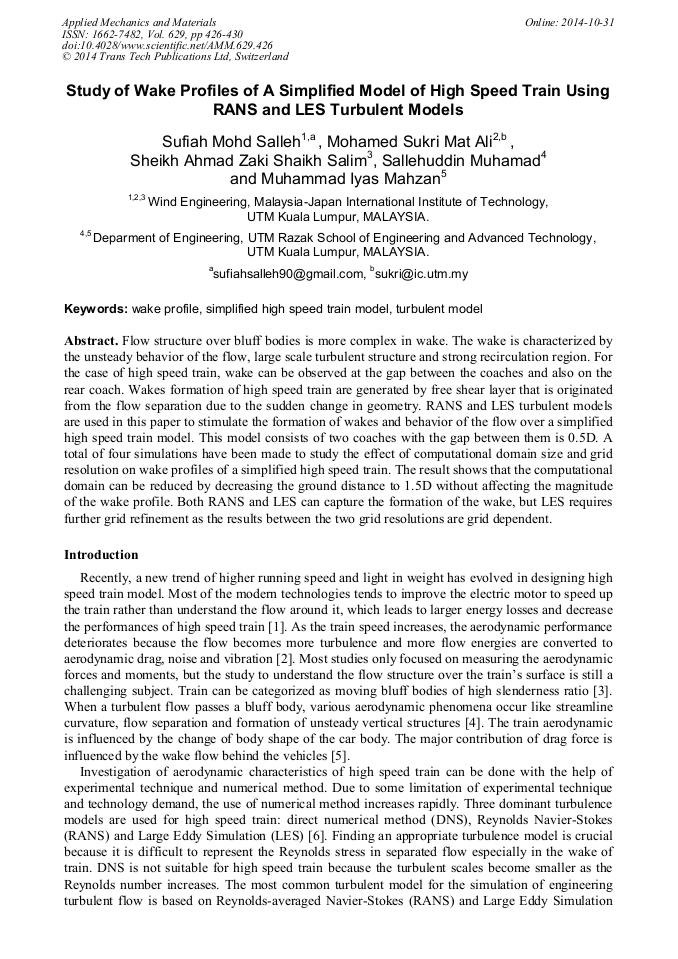

Article Preview

Flow structure over bluff bodies is more complex in wake. The wake is characterized by the unsteady behavior of the flow, large scale turbulent structure and strong recirculation region. For the case of high speed train, wake can be observed at the gap between the coaches and also on the rear coach. Wakes formation of high speed train are generated by free shear layer that is originated from the flow separation due to the sudden change in geometry. RANS and LES turbulent models are used in this paper to stimulate the formation of wakes and behavior of the flow over a simplified high speed train model. This model consists of two coaches with the gap between them is 0.5D. A total of four simulations have been made to study the effect of computational domain size and grid resolution on wake profiles of a simplified high speed train. The result shows that the computational domain can be reduced by decreasing the ground distance to 1.5D without affecting the magnitude of the wake profile. Both RANS and LES can capture the formation of the wake, but LES requires further grid refinement as the results between the two grid resolutions are grid dependent.

Info:

Periodical:

Edited by:

R. Varatharajoo, F.I. Romli, K.A. Ahmad, D.L. Majid and F. Mustapha

Pages:

426-430

Citation:

S. Mohd Salleh et al., "Study of Wake Profiles of a Simplified Model of High Speed Train Using RANS and LES Turbulent Models", Applied Mechanics and Materials, Vol. 629, pp. 426-430, 2014

Online since:

October 2014

Export:

Price:

$38.00

* - Corresponding Author

[1] Raghunathan, Raghu S., H-D. Kim, and T. Setoguchi. Aerodynamics of high-speed railway train., Progress in Aerospace sciences 38. 6 (2002): 469-514.

DOI: https://doi.org/10.1016/s0376-0421(02)00029-5

[2] Hemida, Hassan, and Sinisa Krajnovic. Exploring flow structures around a simplified ICE2 train subjected to a 30 degree side wind using LES., Journal of Engineering Applications of Computational Fluid Dynamics (2009).

DOI: https://doi.org/10.1080/19942060.2009.11015252

[3] Kwak, Minho, et al. Optimum nose shape of a front-rear symmetric train for the reduction of the total aerodynamic drag., Journal of Mechanical Science and Technology 27. 12 (2013): 3733-3743.

DOI: https://doi.org/10.1007/s12206-013-0918-9

[4] Rodi, W. Comparison of LES and RANS calculations of the flow around bluff bodies., Journal of Wind Engineering and Industrial Aerodynamics 69 (1997): 55-75.

DOI: https://doi.org/10.1016/s0167-6105(97)00147-5

[5] Guilmineau, Emmanuel. Computational study of flow around a simplified car body., Journal of wind engineering and industrial aerodynamics 96. 6 (2008): 1207-1217.

DOI: https://doi.org/10.1016/j.jweia.2007.06.041

[6] Krajnovic, Sinisa, Hassan Hemida, and Ben Diedrichs. Time-dependent simulations for the directional stability of high speed trains under the influence of cross winds or cruising inside tunnels., FLUID DYNAMICS APPLICATIONS IN GROUND TRANSPORTATION: Simulation, a primary delepment tool in the automotive industry, Lyon, France, 26-27 October 2005. (2005).

DOI: https://doi.org/10.2514/6.2005-5354

[7] Peters, J. L Aerodynamics of very high speed train and maglev vehicles: State of art and future potential . International Journal of Vehicke Design (1983): 308-341.

[8] Hemida, Hassan, and SinišaKrajnović. LES study of the influence of the nose shape and yaw angles on flow structures around trains., Journal of Wind Engineering and Industrial Aerodynamics 98. 1 (2010): 34-46.

DOI: https://doi.org/10.1016/j.jweia.2009.08.012

[9] Khier, W., M. Breuer, and F. Durst. Flow structure around trains under side wind conditions: a numerical study., Computers & Fluids 29. 2 (2000): 179-195.

DOI: https://doi.org/10.1016/s0045-7930(99)00008-0
