Local Plastic Strain Measurement by EBSD

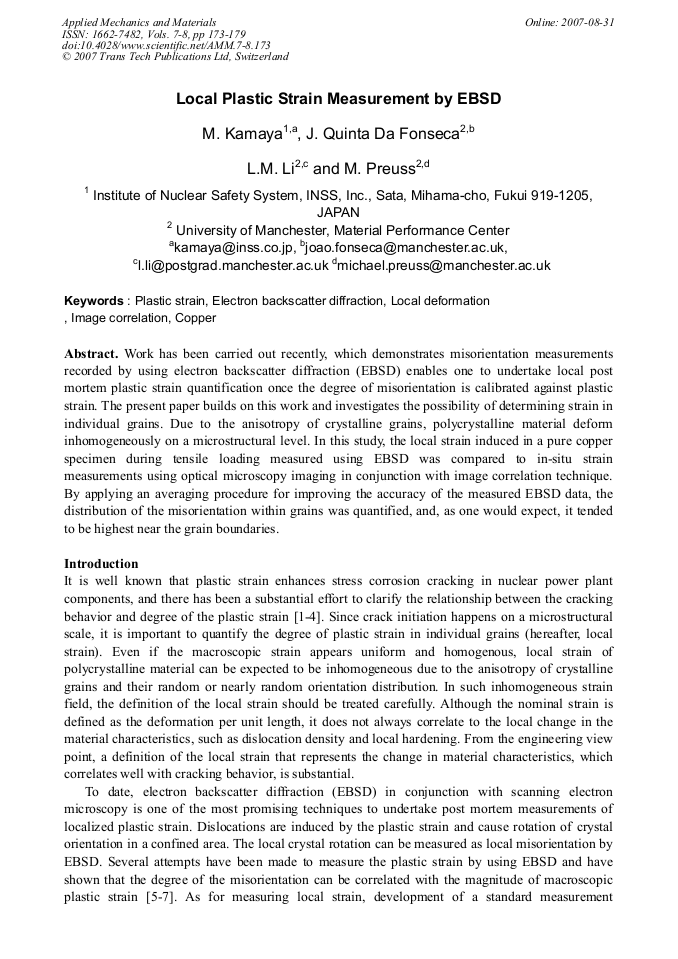

Article Preview

Work has been carried out recently, which demonstrates misorientation measurements recorded by using electron backscatter diffraction (EBSD) enables one to undertake local post mortem plastic strain quantification once the degree of misorientation is calibrated against plastic strain. The present paper builds on this work and investigates the possibility of determining strain in individual grains. Due to the anisotropy of crystalline grains, polycrystalline material deform inhomogeneously on a microstructural level. In this study, the local strain induced in a pure copper specimen during tensile loading measured using EBSD was compared to in-situ strain measurements using optical microscopy imaging in conjunction with image correlation technique. By applying an averaging procedure for improving the accuracy of the measured EBSD data, the distribution of the misorientation within grains was quantified, and, as one would expect, it tended to be highest near the grain boundaries.



Edited by:

J. Quinta da Fonseca




M. Kamaya et al., "Local Plastic Strain Measurement by EBSD ", Applied Mechanics and Materials, Vols. 7-8, pp. 173-179, 2007

Online since:

August 2007




[1] N. Totsuka and Z. Szklarska-Simialowska, Corrosion, Vol. 44 (1988), p.124.

[2] M. O. Speidel, Proc. CORROSION/2000, NACE, paper no. 222 (2000).

[3] P. L. Andresen et al., CORROSION/2000, NACE, paper no. 203 (2000).

[4] K. Arioka et al., Corrosion, Vol. 62 (2006), p.568.

[5] M. Kamaya, A. J. Wilkinson and J. M. Titchmarsh, Acta Mater., Vol. 54 (2006), p.539.

[6] E. M. Lehocey, et al., in: Electron Backscatter Diffraction in Materials Science, p.247, Kluwer Academic Publishers (2000).

[7] K. Mino et al., Adv. Eng. Mater., Vol. 3 (2001), p.922. 0. 3 0. 5 Schmid factor 0. 2mm 0. 3 0. 5 Schmid factor 0. 2mm0. 2mm Fig. 5 Maximum Schmid factor and expected inclination of slip line for each grain (indicated by arrows).

[8] A. J. Wilkinson, Scripta Mater., Vol. 44 (2001), p.2379.

[9] M. Kamaya and T. Kitamura, Int. J. Solids and Structures, in press.
