Fretting Fatigue Apparatus for Shrink-Fitted Shaft Assembly

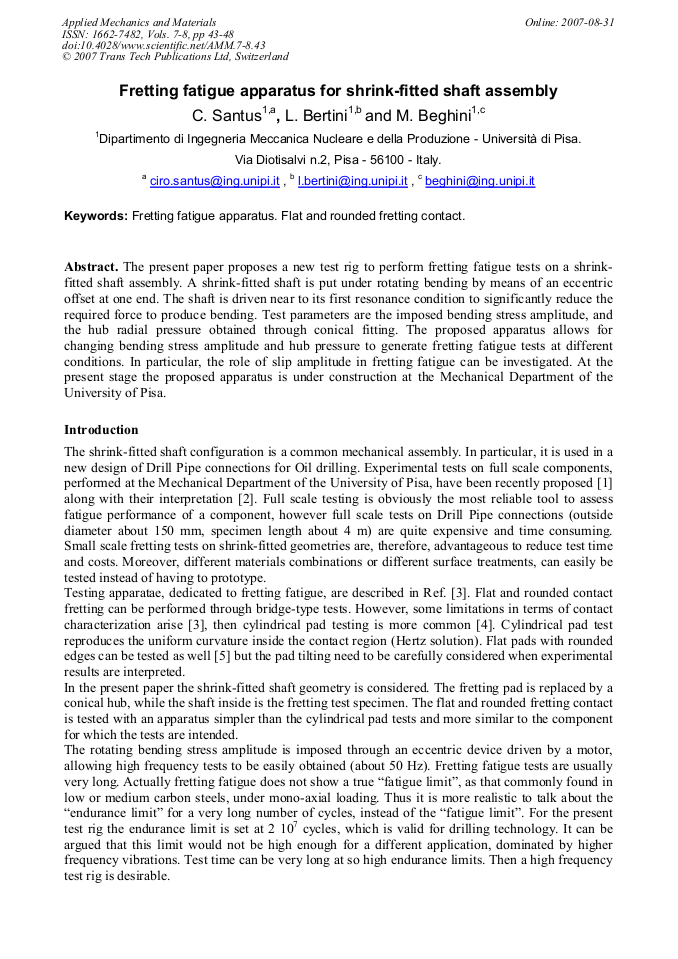

Article Preview

The present paper proposes a new test rig to perform fretting fatigue tests on a shrinkfitted shaft assembly. A shrink-fitted shaft is put under rotating bending by means of an eccentric offset at one end. The shaft is driven near to its first resonance condition to significantly reduce the required force to produce bending. Test parameters are the imposed bending stress amplitude, and the hub radial pressure obtained through conical fitting. The proposed apparatus allows for changing bending stress amplitude and hub pressure to generate fretting fatigue tests at different conditions. In particular, the role of slip amplitude in fretting fatigue can be investigated. At the present stage the proposed apparatus is under construction at the Mechanical Department of the University of Pisa.



Edited by:

J. Quinta da Fonseca






C. Santus et al., "Fretting Fatigue Apparatus for Shrink-Fitted Shaft Assembly ", Applied Mechanics and Materials, Vols. 7-8, pp. 43-48, 2007

Online since:

August 2007




[1] L. Bertini, M. Beghini, C. Santus, and A. Baryshnikov. Fatigue on drill string conical threaded connections, test results and simulations. In Elsevier, editor, Proceedings of 9 th International Fatigue Congress, Atlanta USA. (May 2006).

DOI: 10.1016/j.ijfatigue.2007.08.013

[2] C. Santus. Fretting fatigue of aluminum alloy in contact with steel in oil drilling pipe connections, modeling to interpret test results. International Journal of Fatigue (2007). (In press).

DOI: 10.1016/j.ijfatigue.2007.05.006

[3] D.A. Hills and D. Nowell. Mechanics of Fretting Fatigue. Kluwer accademic publishers (1994).

[4] D. Nowell, D. Dini, and D.A. Hills. Recent developments in the understanding of fretting fatigue. Engineering Fracture Mechanics. 73, 207-222, (2006).

DOI: 10.1016/j.engfracmech.2005.01.013

[5] A. Namjoshi, S. Mall, V. K. Jain and O. Jiny. Mishing. Fretting fatigue crack initiation mechanism in Ti-6Al-4V. Fatigue & Fracture of Engineering Materials and Structures. 25 (10), 955-964 (2002).

DOI: 10.1046/j.1460-2695.2002.00549.x

[6] R.E.D. Bishop and D.C. Johnson. The Mechanics of Vibration. Cambridge University Press (1979).

[7] S.P. Timoshenko and J.N. Goodier. Theory of elasticity. 3rd edition. McGraw-Hill. (1970).

[8] J.A. Araújo, L. Susmel, D. Taylor, J.C.T. Ferro and E.N. Mamiy. On the use of the Theory of Critical Distances and the Modified Wöhler Curve Method to estimate fretting fatigue strength of cylindrical contacts. International Journal of Fatigue. 29, 95-107, (2007).

DOI: 10.1016/j.ijfatigue.2006.02.041
