Measuring of a Nose Landing Gear Load during Take-Off and Landing

Abstract:

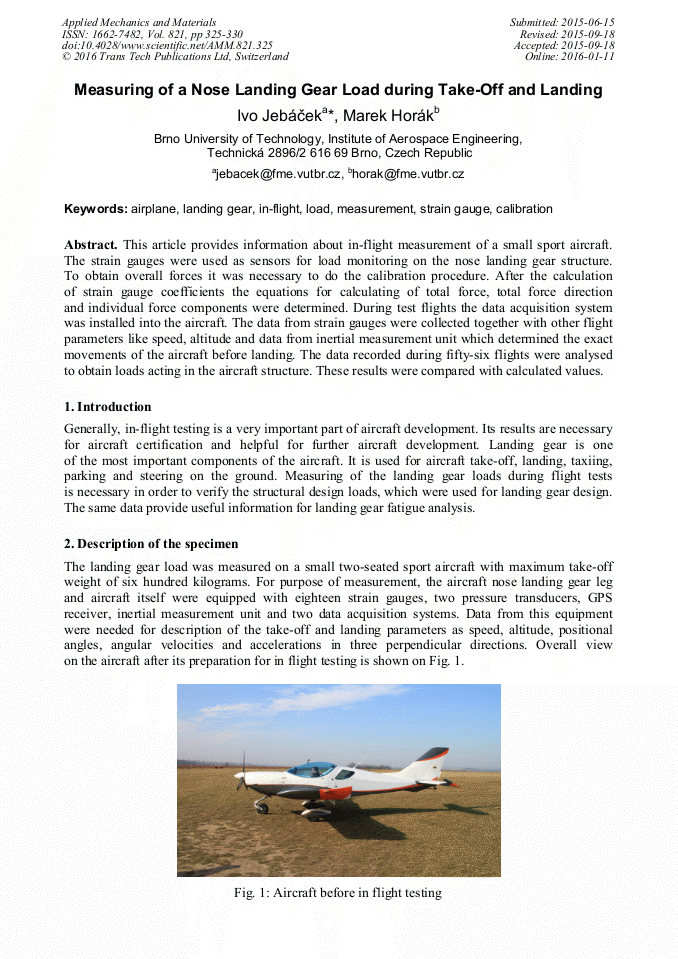

Article Preview

This article provides information about in-flight measurement of a small sport aircraft. The strain gauges were used as sensors for load monitoring on the nose landing gear structure. To obtain overall forces it was necessary to do the calibration procedure. After the calculation of strain gauge coefficients the equations for calculating of total force, total force direction and individual force components were determined. During test flights the data acquisition system was installed into the aircraft. The data from strain gauges were collected together with other flight parameters like speed, altitude and data from inertial measurement unit which determined the exact movements of the aircraft before landing. The data recorded during fifty-six flights were analysed to obtain loads acting in the aircraft structure. These results were compared with calculated values.

Info:

Periodical:

Edited by:

Cyril Fischer

Pages:

325-330

Citation:

I. Jebáček and M. Horák, "Measuring of a Nose Landing Gear Load during Take-Off and Landing", Applied Mechanics and Materials, Vol. 821, pp. 325-330, 2016

Online since:

January 2016

Export:

Price:

$38.00

* - Corresponding Author

[1] I. Jebáček, M. Horák, Possibilities and methods of in-flight loading measurement, Aviation 16 (2012) 47-50.

DOI: https://doi.org/10.3846/16487788.2012.701860

[2] K. Xiangjun, L. Ningning, L. Chunsheng, X. Xianbo, L. Bo, X. Bing, Landing gear ground load measurement and verification test for a large passenger jet, Procedia Engineering 99 (2015) 1423-1433.

DOI: https://doi.org/10.1016/j.proeng.2014.12.679

[3] T.H. Skopinski, S.A. William, Calibration of strain-gage installation in aircraft structures for the measurement of flight loads, NACA Report 1178, (1953).

[4] A. -N. Tang, Z. -T. Zhou, J. -T. Cao, A technique of landing gear loads calibration with strain gauges, in: ICAS 2010, paper ICAS2010-P3. 1.
