Analysis of Cutting Technologies for Lightweight Frame Components

Abstract:

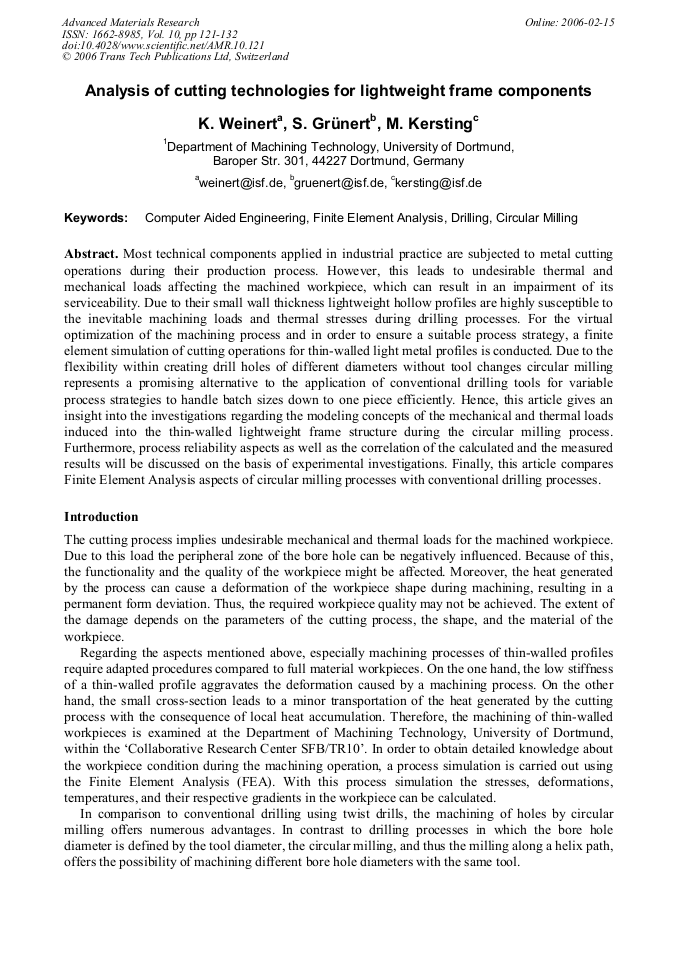

Article Preview

Most technical components applied in industrial practice are subjected to metal cutting operations during their production process. However, this leads to undesirable thermal and mechanical loads affecting the machined workpiece, which can result in an impairment of its serviceability. Due to their small wall thickness lightweight hollow profiles are highly susceptible to the inevitable machining loads and thermal stresses during drilling processes. For the virtual optimization of the machining process and in order to ensure a suitable process strategy, a finite element simulation of cutting operations for thin-walled light metal profiles is conducted. Due to the flexibility within creating drill holes of different diameters without tool changes circular milling represents a promising alternative to the application of conventional drilling tools for variable process strategies to handle batch sizes down to one piece efficiently. Hence, this article gives an insight into the investigations regarding the modeling concepts of the mechanical and thermal loads induced into the thin-walled lightweight frame structure during the circular milling process. Furthermore, process reliability aspects as well as the correlation of the calculated and the measured results will be discussed on the basis of experimental investigations. Finally, this article compares Finite Element Analysis aspects of circular milling processes with conventional drilling processes.

Info:

Periodical:

Edited by:

Matthias Kleiner, Jürgen Fleischer, Michael Zäh and Marco Schikorra

Pages:

121-132

DOI:

10.4028/www.scientific.net/AMR.10.121

Citation:

K. Weinert et al., "Analysis of Cutting Technologies for Lightweight Frame Components", Advanced Materials Research, Vol. 10, pp. 121-132, 2006

Online since:

February 2006

Export:

Price:

$35.00

[1] Weinert, K.; Schulte, M.; Hammer, N.; Peters, C.: Finite Element Modeling Concepts of the Load Application on Thin Walled Profiles During the Drilling. Process Production Engineering - Research and Development, Annals of the German Academic Society for Production Engineering, XI (2004).

[2] Weinert, K.; Peters, C.; Schulte, M.: Simulation der spanenden Bearbeitung dünnwandiger Profile. ZWF Jahrg. 97 (2002) 12, Carl Hanser Verlag, München, pp.649-651.

[3] Zäh M. F.; Kleiner M.; Weinert K.; Roeren S.; Schikorra M.; Mehnen J.; Stautner M.; Peters C.; Schulte M.; Kersting M.: Simulation von Prozessketten zur flexiblen Fertigung leichter Tragwerkstrukturen. ZWF - Zeitschrift für wirtschaftlichen Fabrikbetrieb, Jahrgang 99 (2004).

DOI: 10.3139/104.100773

[4] EN AW-6060: Werkstoff Datenblatt AlMgSi. Gesamtverband der Aluminiumindustrie e.V., Düsseldorf (2002).

[5] Groth, C.; Müller, G.: FEM für Praktiker - Band 3: Temperaturfelder. 5th Ed., Expert, Renningen, (2001).

[6] Weinert, K.; Peters, C.; Kersting, M.: FEM-Analyse der Bauteilbeeinflussung dünnwandiger Profile durch spanende Bearbeitung. Aluminium, International Journal for Industry, Research and Application, 80 (2004).

[7] Weinert, K.; Grünert, S.; Hammer, N.; Kersting, M.: Analysis of Circular Milling Processes for Thin-Walled Space-Frame-Structures Applying FEA-Simulation. Production Engineering - Research and Development, Annals of the German Academic Society for Production Engineering, submitted 2005, Status: in print.

[8] Hoffmeister, H. -W.; Weber, T.: Schleifprozesse simulieren mit der Finite-ElementeMethode. Maschinenmarkt 103 (1997) 33, pp.20-25.

[9] Westkämper, E.; Hoffmeister, H-W.; Weber, T.: Grinding Process Simulation with FEM. Production Engineering III (1996) 2, pp.45-48.

[10] Carslaw, H. S.; Jaeger, J. C.: Conduction of Heat in Solids. 2nd Ed. University Press, Oxford, (1959).

[11] Weinert, K.; Kersting, M.; Schulte, M.; Peters, C.: FEM-Simulation of Thermal Stresses During the Drilling Process of Thin-Walled Profiles. Production Engineering - Research and Development, Annals of the German Academic Society for Production Engineering, XII (2005).

[12] Spur, G.: Thermische Beanspruchung des Schneidkeils. Zeitschrift für wirtschaftlichen Fabrikbetrieb 78 (1983) 10, Hanser, Munich, pp.469-470.
