Composite Extrusion – Determination of the Influencing Factors on the Positioning of the Reinforcing Elements

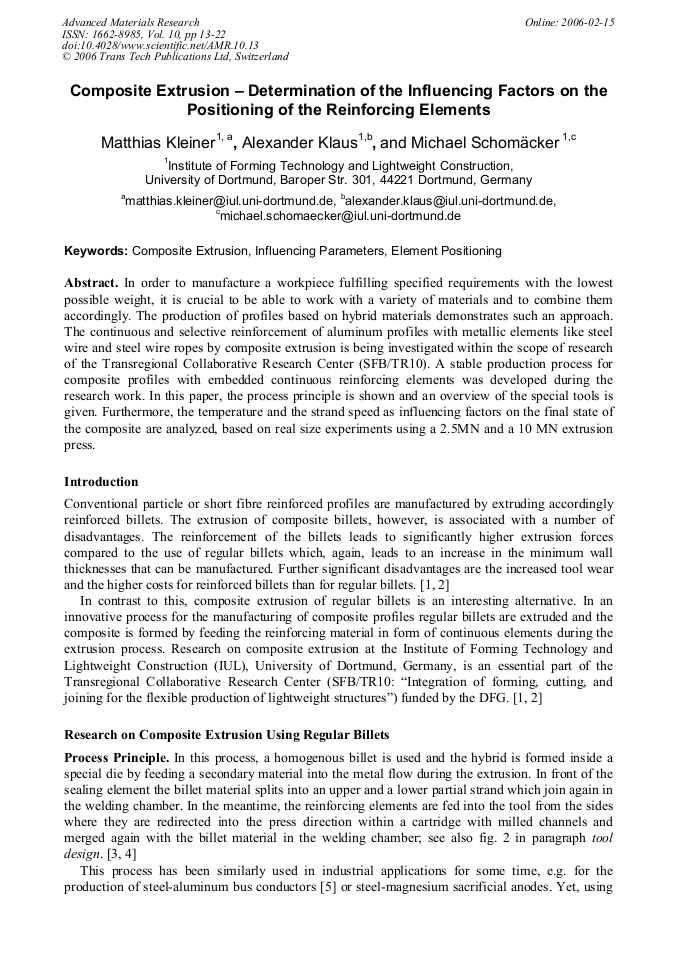

Article Preview

In order to manufacture a workpiece fulfilling specified requirements with the lowest possible weight, it is crucial to be able to work with a variety of materials and to combine them accordingly. The production of profiles based on hybrid materials demonstrates such an approach. The continuous and selective reinforcement of aluminum profiles with metallic elements like steel wire and steel wire ropes by composite extrusion is being investigated within the scope of research of the Transregional Collaborative Research Center (SFB/TR10). A stable production process for composite profiles with embedded continuous reinforcing elements was developed during the research work. In this paper, the process principle is shown and an overview of the special tools is given. Furthermore, the temperature and the strand speed as influencing factors on the final state of the composite are analyzed, based on real size experiments using a 2.5MN and a 10 MN extrusion press.



Edited by:

Matthias Kleiner, Jürgen Fleischer, Michael Zäh and Marco Schikorra






M. Kleiner et al., "Composite Extrusion – Determination of the Influencing Factors on the Positioning of the Reinforcing Elements", Advanced Materials Research, Vol. 10, pp. 13-22, 2006

Online since:

February 2006




[1] Klaus, A.; Schomäcker, M.; Kleiner, M.: First Advances in the Manufacture of Composite Extrusions for Lightweight Constructions. Light Metal Age Vol. 62 (2004), No. 8. pp.12-21.

[2] Kleiner, M.; Klaus, A.; Schomäcker, M.: Verbundstrangpressen. Aluminium, International Journal for Industrie, Research and Application, Vol. 80/ 12 (2004), pp.1370-1374.

[3] Aluminium Walzwerke Singen: Verfahren zur Herstellung von Verbundprofilen sowie Vorrichtung zu dessen Durchführung, German Patent Application Publication DT 2414178 A1, 23. 3. (1974).

[4] Kleiner, M.; Schomäcker, M.; Schikorra, M.; Klaus, A.: Manufacture of Continuously Reinforced Profiles Using Standard 6060 Billets. Extrusion Technology 2004, Orlando, USA.

[5] Mier, G.: Composite bus conductors aluminium-steel for metropolitan railways and underground trains (in German). Schweizer Aluminium Rundschau, Vol. 37 (1987) Issue 5, pp.12-17.

[6] Weidenmann, K.; Schomäcker, M.; Kerscher, E.; Löhe, D. ; Kleiner, M.: Composite extrusion of aluminium matrix specimens reinforced with continuous ceramic fibres. Light Metal Age, October 2005, pp.6-10.

[7] Weidenmann, K.; Kerscher, E.; Schulze, V.; Löhe, D.: Grenzflächen in Verbundstrangpressprofilen auf Aluminiumbasis mit verschiedenen Verstärkungselementen. Prakt. Met. Sonderband 37, 2005, pp.131-136.

[8] Kleiner, M.; Schomäcker, M.; Schikorra, M.; Klaus, A.: Herstellung verbundverstärkter Aluminiumprofile für ultraleichte Tragwerke durch Strangpressen, Materialwissenschaft und Werkstofftechnik 35 No. 7, 2004, pp.431-439.

DOI: 10.1002/mawe.200400762

[9] Tillmann, W.; Vogli, E; Weidenmann, K.; Fleck, C.: Reinforced lightweight composite materials. Proc. of ITSC 2005, Basel.

[10] Flitta, I.; Sheppard, T.: Nature of friction in extrusion process and its effect on material flow. Materials Science and Technology, Vol. 19, July 2003, pp.837-846.

DOI: 10.1179/026708303225004422
